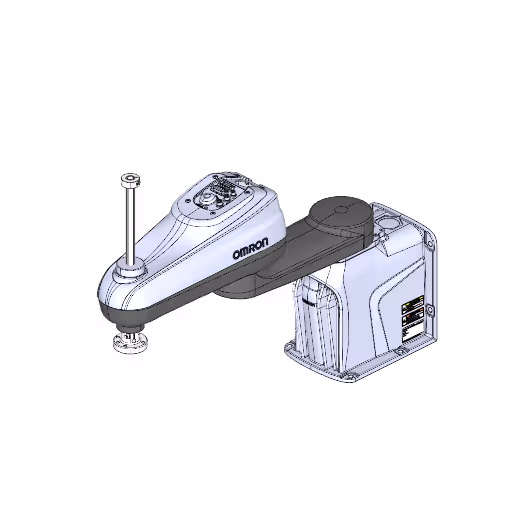

OMRON RS4-2055002
Specifications
Type
SCARA
Brand
OMRON
Model
RS4-2055002
Axes
4
Payload
5 kg
Reach
550 mm
Repeatability
0.01 mm
Weight
16 kg
Maximum speed
800 mm/s
Speed at rated payload
0.48 s per cycle
IP rating
IP20 / NEMA Type 1
Operating temperature
5 to 40 °C
Mounting orientation
Table (pedestal/floor) and Wall
Controller
Not required (standard models), Robotics Integrated Controller for iCS-ECAT versions
Power supply
24 VDC, 5 A (control power) / 48 VDC, 20 A (high power)
Power consumption
960 W
Communication interfaces
PROFINET, TCP/IP (standard); EtherCAT for iCS-ECAT versions
The SCARA OMRON RS4-2055002 is a highly efficient industrial automation component designed for precision and versatility. With four axes and a payload capacity of 5 kg, this robot arm features a reach of 550 mm and an impressive repeatability of 0.01 mm, making it ideal for various applications. This model operates at a maximum speed of 800 mm/s and is designed to function effectively within an operating temperature range of 5 to 40 °C, ensuring optimal performance in diverse environments while requiring only a 24 VDC power supply for control purposes.
