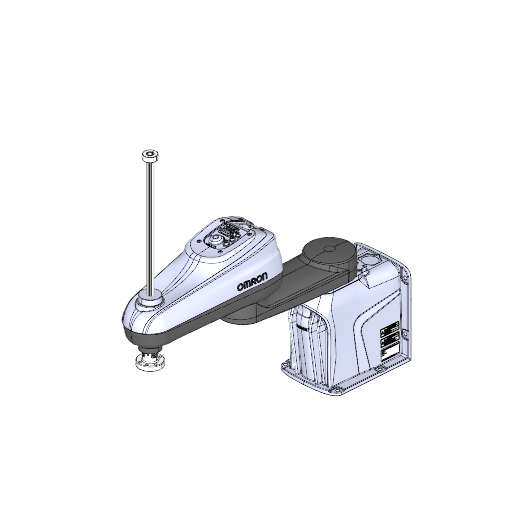

OMRON RS4-2055104
Specifications
Type
SCARA
Brand
OMRON
Model
RS4-2055104
Axes
4
Payload
5 kg
Reach
550 mm
Repeatability
0.01 mm
Weight
16.4 kg
Maximum speed
800 mm/s
Speed at rated payload
305 mm/s
IP rating
IP20 / NEMA Type 1
Operating temperature
5 to 40 °C
Mounting orientation
Table, Wall (Ceiling not supported)
Controller
Not required (iCS-ENET interface)
Power supply
24 VDC: 5 A / 48 VDC: 20 A
Power consumption
960 W
Communication interfaces
PROFINET, TCP/IP; EtherCAT not supported
The SCARA OMRON RS4-2055104 is a versatile 4-axis robotic arm designed for industrial automation applications. With a reach of 550 mm and a maximum payload capacity of 5 kg, this robotic solution offers impressive speed capabilities, achieving up to 800 mm/s and maintaining a repeatability of 0.01 mm. Operating within an environment of 5 to 40 °C and featuring an IP20 / NEMA Type 1 rating, it is suitable for various mounting orientations, including table and wall installations.
