OMRON RT6-1011304

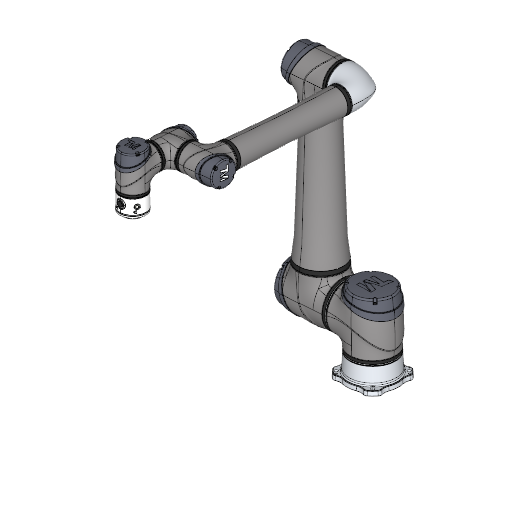

Cobot OMRON RT6-1011304

Specifications

Type

Cobot

Brand

OMRON

Model

RT6-1011304

Axes

6

Payload

12 kg

Reach

1300 mm

Repeatability

0.03 mm

Weight

33.3 kg

Speed at rated payload

1300 mm/s

IP rating

IP54

Mounting orientation

Wall, Table (pedestal/floor), Ceiling

Controller

Integrated AC powered controller (Control Box & Robot Stick)

Power supply

100-240 VAC, 50/60 Hz

Certifications

ISO 13849-1 PL d Cat.3, ISO 10218-1, UL, CSA

Cleanroom class

ISO Class 3

Safety functions

31 built-in certified safety functions, ISO 13849-1 Cat.3 PL d, TÜV Nord

Communication interfaces

Ethernet TCP/IP, MODBUS Master, MODBUS Slave, MODBUS/TCP, Serial RS-232C

Download OMRON RT6-1011304 digital twin

Start for free
The Cobot OMRON RT6-1011304 is a versatile six-axis robotic arm designed for industrial automation, featuring a payload capacity of 12 kg and a reach of 1300 mm. This robust cobot ensures precise operation with a repeatability of 0.03 mm and a maximum speed of 4000 mm/s, while its integrated AC powered controller supports various mounting orientations, including wall, table, and ceiling. With an IP54 rating and compliance with ISO Class 3 cleanroom standards, the RT6-1011304 is equipped with 31 built-in certified safety functions, making it an ideal choice for a range of applications in advanced manufacturing environments.
3D View

What are the technology applications of RT6-1011304?

OMRON RT6-1011304 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of OMRON RT6-1011304:Assembly, Dispensing, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplied or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

A sleek interface displays a robotic arm shaping a surfboard model.

OMRON RT6-1011304 applications programmed with ENCY Robot

A robotic arm performs a pick-and-place operation with an object.

Pick-and-Place

A robotic arm polishes a circular metal surface with precision.

Polishing

Frequently asked questions

Can OMRON RT6-1011304 be programmed with ENCY Robot?

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase OMRON RT6-1011304 or request a quote, please contact the manufacturer or an authorized local supplier.
