Cobot OMRON TM5MX-700 Specs and Applications

Specifications

Type

Cobot

Brand

OMRON

Model

TM5MX-700

Axes

Payload

6 kg

Reach

700 mm

Repeatability

0.05 mm

Weight

22.1 kg

Maximum speed

1.1 m/s

Speed at rated payload

1.1 m/s

IP rating

IP54 (robot arm), IP32 (control box), IP40 (robot stick)

Mounting orientation

Wall, Table, Ceiling

Controller

TM Series Robot Control Box

Power supply

100-240 VAC, 50/60 Hz or 22-60 VDC

Power consumption

220 W

Certifications

ISO 13849-1 (PL d, Cat. 3), ISO 10218-1, UL1740, CAN/CSA Z424-14, SEMI S2 (optional)

Cleanroom class

ISO Class 3

Safety functions

Built-in certified safety functions including ISO 13849-1, Category 3, Performance Level d; complies with ISO 10218-1

Communication interfaces

RS232, Ethernet (master), Modbus TCP/RTU (master & slave), PROFINET (optional), EtherNet/IP (optional)

The OMRON TM5MX-700 Cobot is a versatile 6-axis industrial automation component designed to enhance productivity in various applications. With a payload capacity of 6 kg and a reach of 700 mm, this cobot ensures precise movement with a repeatability of 0.05 mm, making it ideal for tasks requiring accuracy. It features a robust IP54 rating for the robot arm and a cleanroom classification of ISO Class 3, accommodating diverse mounting orientations including wall, table, and ceiling for optimal integration into existing workflows.

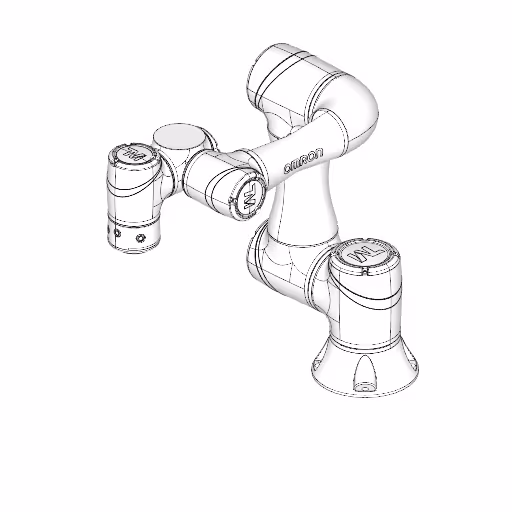

3D View

What are the technology applications of TM5MX-700?

OMRON TM5MX-700 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of OMRON TM5MX-700: Assembly, Dispensing, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

OMRON TM5MX-700 applications programmed with ENCY Robot

Pick and place

Polishing

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase OMRON TM5MX-700 or request a quote, please contact the manufacturer or an authorized local supplier.
