Cobot RAINBOW RB3-730ES(U-Version) Specs and Applications

Specifications

Type

Cobot

Brand

RAINBOW

Model

RB3-730ES(U-Version)

Axes

Payload

3 kg

Reach

730 mm

Repeatability

0.05 mm

Weight

11 kg

Maximum speed

1 m/s

Speed at rated payload

1000 mm/s

IP rating

IP54

Mounting orientation

Floor, Ceiling, Wall

Controller

CB06 / CB07 (Control Box from Rainbow Robotics)

Power supply

100-240V AC, 50-60 Hz Single Phase

Power consumption

100 W

Tool flange

EN ISO 9409-1-50-4-M6

Certifications

CE, TÜV SÜD, KC, ISO 10218-1, ISO/TS 15066, ISO 13849-1 Cat.3 PL d, IEC 62061 SIL 2

Safety functions

STO, SS1, SS2, SOS, SLP, SLS, SLA, SLI, SLT, RPL, EMS1, EMS2, PRS, HSS, SSS

Communication interfaces

Ethernet (TCP/IP, MODBUS TCP, Control Script), RS-485, USB, LAN, Siemens S7, OMRON Fins, Mitsubishi MC, EtherNet/IP, ProfiNet, OPC-UA

The Cobot RAINBOW RB3-730ES(U-Version) is a versatile six-axis robotic arm designed for industrial automation tasks with a payload capacity of 3 kg and a reach of 730 mm. It features exceptional repeatability of 0.05 mm and operates at maximum speeds of 1 m/s, making it ideal for precise applications. With an IP54 rating, multiple mounting orientations, and an extensive suite of safety functions and communication interfaces, this cobot seamlessly integrates into various automated systems.

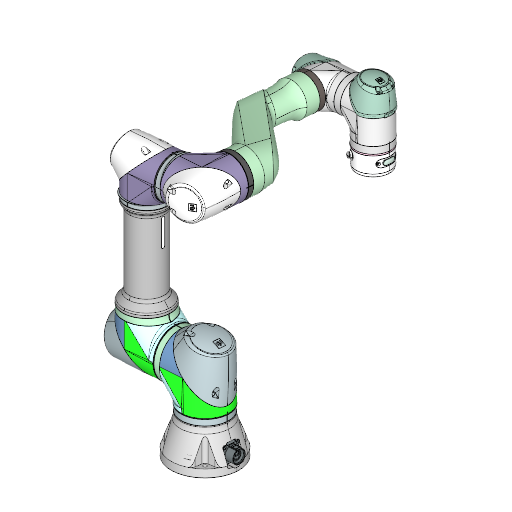

3D View

What are the technology applications of RB3-730ES(U-Version)?

RAINBOW RB3-730ES(U-Version) is a versatile robot suitable for a wide range of industrial applications.

Primary applications of RAINBOW RB3-730ES(U-Version): Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

RAINBOW RB3-730ES(U-Version) applications programmed with ENCY Robot

Multiaxis cutting

Polishing

Robot milling

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase RAINBOW RB3-730ES(U-Version) or request a quote, please contact the manufacturer or an authorized local supplier.
