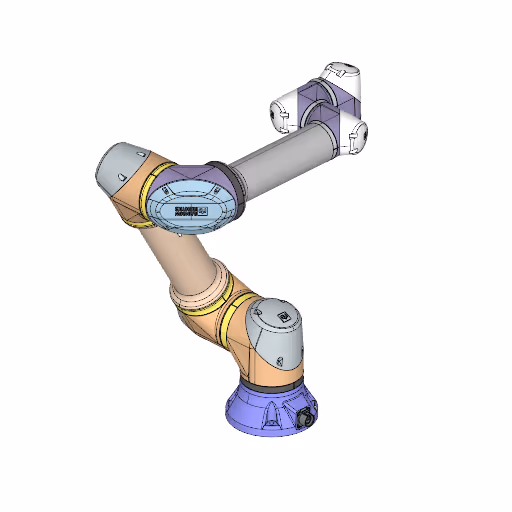

Cobot RAINBOW RB5-850E(U-Version) Specs and Applications

Specifications

Type

Cobot

Brand

RAINBOW

Model

RB5-850E(U-Version)

Axes

Payload

5 kg

Reach

927.7 mm

Repeatability

0.05 mm

Weight

22 kg

Maximum speed

1000 mm/s

IP rating

IP66

Controller

Rainbow Robotics RB Series Control Box (e.g. CB06 / CB07 variants)

Power supply

100-240 VAC, 50-60 Hz (Single Phase)

Power consumption

200 W

Tool flange

M8-8Pin × 2 EA (12/24V, 2A), flange interface compatible EN ISO 9409-1-50-4-M6

Certifications

CE, KC, NRTL, TÜV SÜD; ISO 13849-1, ISO 10218-1, ISO/TS 15066

Safety functions

Stop Category 0 / 1 / 2; Functional safety Cat. 3, Performance Level d (PL d) per ISO 13849-1; SIL 2 per IEC 62061; collision detection; speed, torque and position limits; emergency stop; protection stops

Communication interfaces

Ethernet (TCP/IP), ModbusTCP, Ethernet/IP, ProfiNet, Siemens S7, Omron FINS, Mitsubishi MC, LS XGT

The Cobot RAINBOW RB5-850E(U-Version) is a versatile 6-axis collaborative robot designed for precision automation tasks with a payload capacity of 5 kg and a reach of 927.7 mm. It features a high repeatability of 0.05 mm and operates at a maximum speed of 1000 mm/s, making it suitable for various industrial applications. With its robust IP66 rating, integrated safety functions, and compatibility with multiple communication interfaces, this cobot ensures reliable performance in demanding environments while adhering to global safety standards.

3D View

What are the technology applications of RB5-850E(U-Version)?

RAINBOW RB5-850E(U-Version) is a versatile robot suitable for a wide range of industrial applications.

Primary applications of RAINBOW RB5-850E(U-Version): Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

RAINBOW RB5-850E(U-Version) applications programmed with ENCY Robot

Multiaxis cutting

Polishing

Robot milling

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase RAINBOW RB5-850E(U-Version) or request a quote, please contact the manufacturer or an authorized local supplier.

Other Cobot by RAINBOW

Details

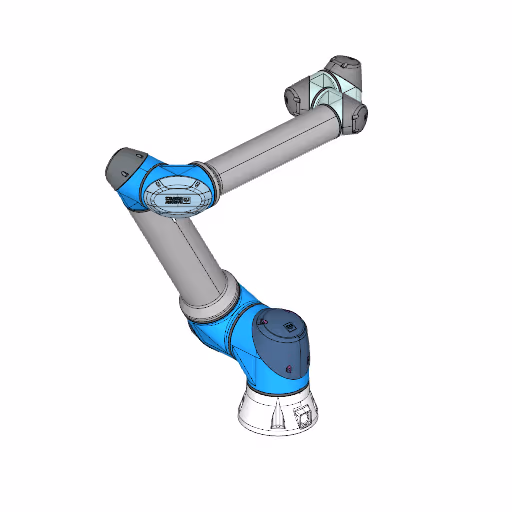

RAINBOW RB10-1300E(E-Version)

Details

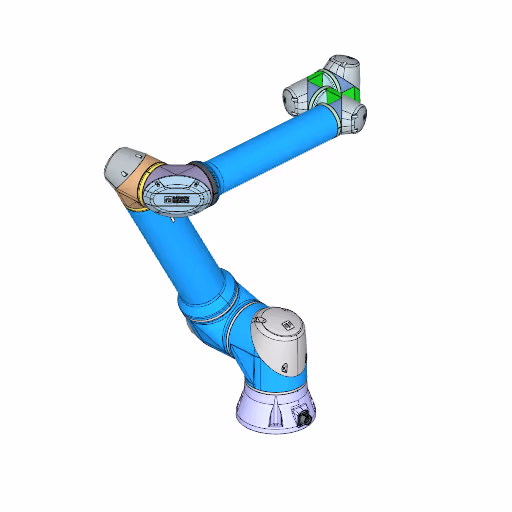

RAINBOW RB10-1300E(U-Version)

Details

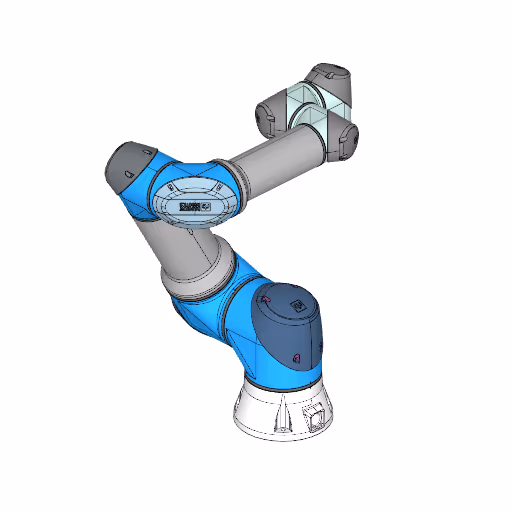

RAINBOW RB16-900E(E-Version)

Details

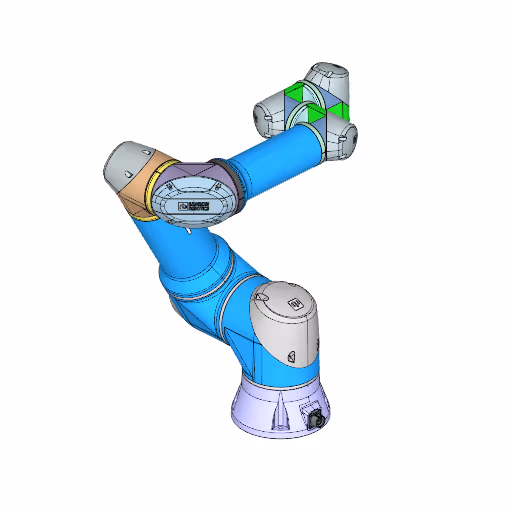

RAINBOW RB16-900E(U-Version)
