RAINBOW RB5-850E(E-Version)

Cobot RAINBOW RB5-850E(E-Version)
Specifications
Type
Cobot
Brand
RAINBOW
Model
RB5-850E(E-Version)
Axes
6
Payload
5 kg
Reach
927.7 mm
Repeatability
0.05 mm
Weight
22 kg
Maximum speed
1000 mm/s
Speed at rated payload
1000 mm/s
IP rating
IP66
Power supply
100-240 VAC, 50-60 Hz Single Phase
Tool flange
EN ISO 9409-1-50-4-M6
Certifications
CE, KC; ISO 13849-1 Cat.3 PL d; ISO 10218-1; ISO/TS 15066; TÜV SÜD
Safety functions
Safety Controller conforming to ISO 13849-1 Category 3, Performance Level d; Stop Categories including Emergency Stop, Protective Stop, Soft Safeguard Stop; additional safety device interface; functional safety up to PL d
Communication interfaces
Ethernet, TCP/IP, ModbusTCP, EtherNet/IP, ProfiNet, Siemens S7, Omron FINS, Mitsubishi MC, LS XGT

The Cobot RAINBOW RB5-850E (E-Version) is a highly capable industrial automation component featuring six axes and a payload capacity of 5 kg. With a reach of 927.7 mm and a maximum speed of 1000 mm/s, it ensures high precision with a repeatability of 0.05 mm. Designed for robust operation, it has an IP66 rating and incorporates comprehensive safety functions along with multiple communication interfaces, making it an ideal solution for diverse automation needs in various industries.

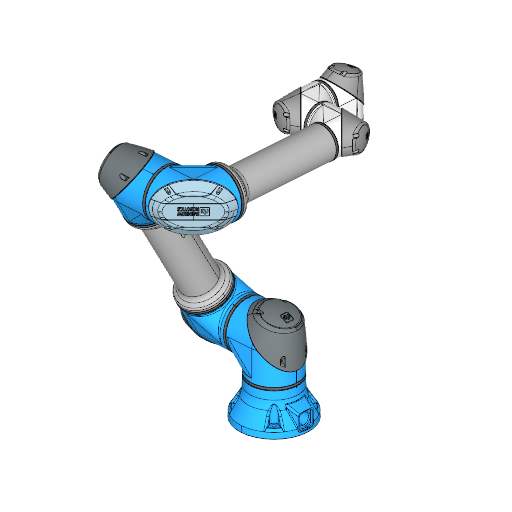

3D View

What are the technology applications of RB5-850E(E-Version)?

RAINBOW RB5-850E(E-Version) is a versatile robot suitable for a wide range of industrial applications.

Primary applications of RAINBOW RB5-850E(E-Version): Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜
ENCY Robot interface

RAINBOW RB5-850E(E-Version) applications programmed with ENCY Robot

Multiaxis cutting

Multiaxis cutting

Polishing

Polishing

Robot milling

Robot milling

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.
Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.
Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.
If you would like to purchase ENCY, please contact us for a quote.
No. We do not sell robots and do not provide pricing information. To purchase RAINBOW RB5-850E(E-Version) or request a quote, please contact the manufacturer or an authorized local supplier.
