Cobot SIASUN GCR16-2000 Specs and Applications

Specifications

Type

Cobot

Brand

Siasun

Model

GCR16-2000

Axes

Payload

16 kg

Reach

2000 mm

Repeatability

0.05 mm

Weight

60 kg

Maximum speed

3.5 m/s

Speed at rated payload

3.5 m/s

IP rating

IP54/IP65

Operating temperature

-10 to 50 °C

Mounting orientation

Installed in any direction

Power supply

220-240VAC 47-63Hz 10A / 100-200VAC 47-63Hz 16A

Power consumption

500 W

Tool flange

GB/T 14468.1-50-4-M6 (equivalent to ISO 9409-1)

Certifications

ISO 10218-1:2011; IEC 60204-1:2016; ISO 13849-1:2023; IEC/EN 62061:2021; IEC 61800-5-2:2022; IEC 61784-3:2021; IEC 61508-1/-2/-3/-4:2010; IEC 60664-1:2020; IEC 61000-6-2:2016; IEC 61000-6-4:2018; IEC 61000-6-7:2014; IEC 61326-3:2017

Safety functions

Emergency stop (ES), Protective stop, Safe Operating Stop (SOS), Joint Safe Limited Position (SLP), Joint Safe Limited Speed (SLS), TCP position limit, TCP speed limit, Elbow position limit, Elbow speed limit

Communication interfaces

TCP/IP, Modbus/TCP, Profinet, Ethernet/IP, CAN, RS485, LAN, EtherCAT

The Cobot SIASUN GCR16-2000 is a versatile 6-axis robotic arm designed for industrial automation applications, capable of handling a payload of up to 16 kg with a reach of 2000 mm. Featuring an impressive repeatability of 0.05 mm and a maximum speed of 3.5 m/s, this 60 kg robot operates efficiently within a wide temperature range of -10 to 50 °C, ensuring robust performance in diverse environments. With its advanced safety functions and multiple communication interfaces, the GCR16-2000 provides a reliable and efficient solution for various automation needs in the industrial sector.

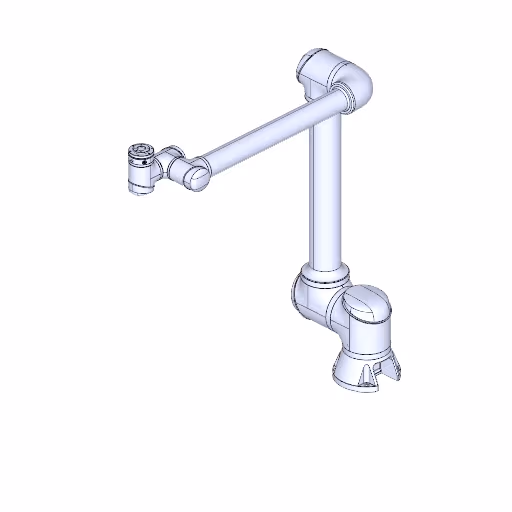

3D View

What are the technology applications of GCR16-2000?

SIASUN GCR16-2000 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of SIASUN GCR16-2000: Deburring, Grinding, Multiaxis cutting, Polishing, Robot milling. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

SIASUN GCR16-2000 applications programmed with ENCY Robot

Multiaxis cutting

Polishing

Robot milling

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase SIASUN GCR16-2000 or request a quote, please contact the manufacturer or an authorized local supplier.

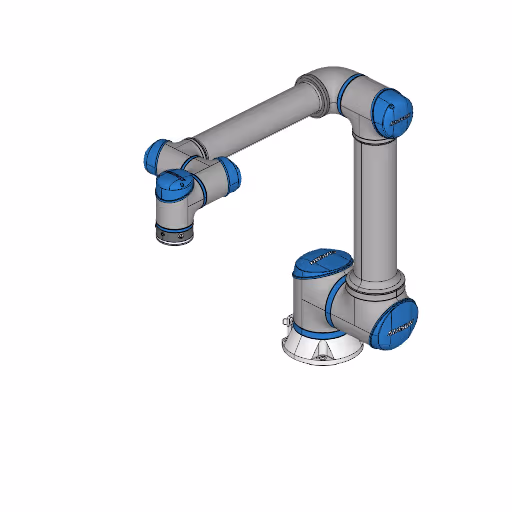

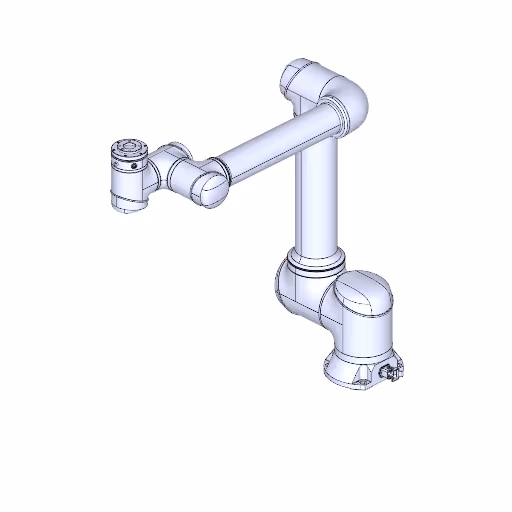

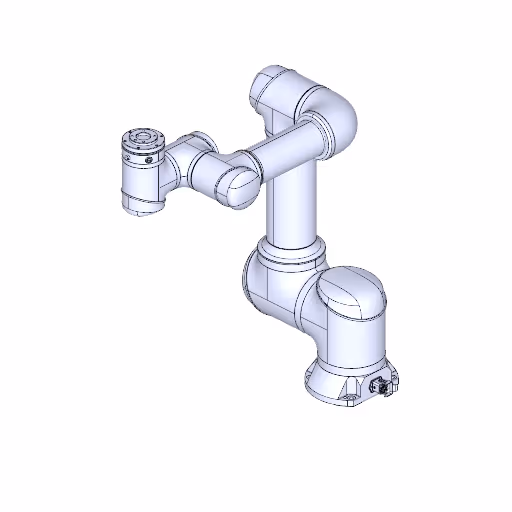

Other Cobot by Siasun
