Cobot SIASUN GCR5-910-W Specs and Applications

Specifications

Type

Cobot

Brand

Siasun

Model

GCR5-910-W

Axes

Payload

5 kg

Reach

917 mm

Repeatability

0.02 mm

Weight

21 kg

Maximum speed

3600 mm/s

Speed at rated payload

1500 mm/s

IP rating

IP54 / IP65

Operating temperature

-10 to 50 °C

Mounting orientation

Floor-mounted, Ceiling-mounted, Any direction installation

Controller

DC15S control cabinet

Power supply

100-240 VAC, 47-63 Hz, 10 A

Power consumption

200 W

Tool flange

GB/T 14468.1-50-4-M6 (equivalent ISO 9409-1-50-4-M6)

Certifications

TUV SUD certification; functional safety under IEC 61508

Safety functions

Collision detection; force and power monitoring; functional safety certified by TUV SUD (first through IEC 61508)

Communication interfaces

TCP/IP; Modbus/TCP; Profinet; Ethernet/IP; CAN; RS485; LAN; EtherCAT; incremental encoder signals

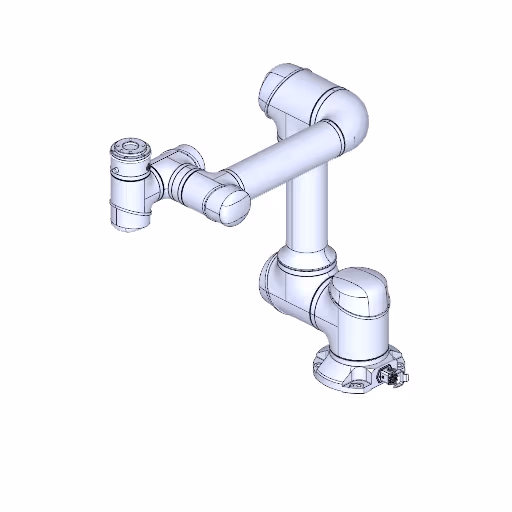

The Cobot SIASUN GCR5-910-W is a versatile 6-axis robotic arm designed for industrial automation, capable of handling a payload of up to 5 kg with a reach of 917 mm. With a remarkable repeatability of 0.02 mm and a maximum speed of 3600 mm/s, this cobot excels in precision and efficiency, making it suitable for a range of applications. Featuring robust safety functions and a wide variety of communication interfaces, it operates effectively in demanding environments, with an IP rating of IP54/IP65 and a temperature range of -10 to 50 °C.

3D View

What are the technology applications of GCR5-910-W?

SIASUN GCR5-910-W is a versatile robot suitable for a wide range of industrial applications.

Primary applications of SIASUN GCR5-910-W: Deburring, Grinding, Multiaxis cutting, Polishing, Robot milling. But we recommend to consult with your robot supplier or the manufacturer.
