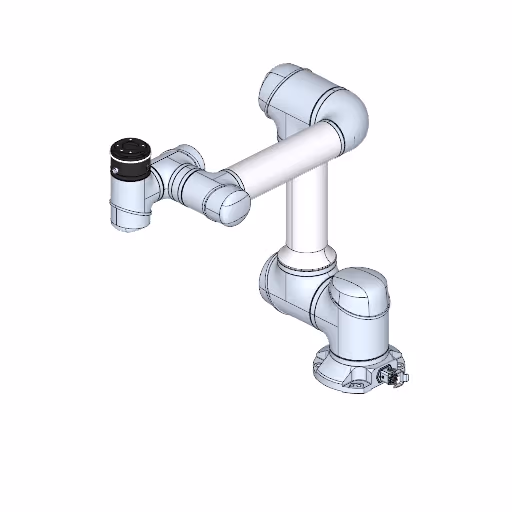

Cobot SIASUN GCR7-910 Specs and Applications

Specifications

Type

Cobot

Brand

Siasun

Model

GCR7-910

Axes

Payload

7 kg

Reach

917 mm

Repeatability

0.02 mm

Weight

22 kg

Maximum speed

3.6 m/s

Speed at rated payload

1.5 m/s

IP rating

IP54/IP65

Operating temperature

-10 to 50 °C

Mounting orientation

Installed in any direction

Controller

DUCO core controller (control cabinets DC00 / DC15S / DC30D)

Power supply

100-240 VAC, 47-63 Hz, 10 A

Power consumption

200 W

Tool flange

GB/T 14468.1-50-4-M6 (equivalent to ISO 9409-1-50-4-M6)

Certifications

TÜV SÜD certification, IEC 61508; functional safety level: SIL 2 / PL d, certain stop/emergency functions SIL 3 / PL e

Safety functions

Emergency stop (ES), Protective stop, Safe Operating Stop (SOS), Joint Safe Limited Position (SLP), Joint Safe Limited Speed (SLS), TCP position limit

Communication interfaces

TCP/IP, Modbus/TCP, Profinet (Slave), Ethernet/IP (Slave), CAN, RS485; 16-DI / 16-DO (24V, PNP)

The Cobot SIASUN GCR7-910 is a versatile six-axis robotic arm designed for efficient industrial automation. With a payload capacity of 7 kg and a reach of 917 mm, it offers high precision with a repeatability of 0.02 mm, making it suitable for various applications in demanding environments. Built with a robust IP54/IP65 rating, this 22 kg cobot operates effectively within an operating temperature range of -10 to 50 °C, ensuring reliable performance while adhering to stringent safety standards as certified by TÜV SÜD.

3D View

What are the technology applications of GCR7-910?

SIASUN GCR7-910 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of SIASUN GCR7-910: Assembly, Deburring, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.
