Industrial Robot STAUBLI TX2-40 Specs and Applications

Specifications

Type

Industrial Robot

Brand

Staubli

Model

TX2-40

Axes

Payload

2.0 kg

Reach

515 mm

Repeatability

0.020 mm

Weight

29 kg

Maximum speed

8.6 m/s

Speed at rated payload

8.6 m/s

IP rating

IP65 (arm), IP67 (wrist)

Operating temperature

5 to 40 °C

Mounting orientation

Floor / Wall / Ceiling

Controller

CS9

Power supply

200-230V or 400-480V three-phase 50/60Hz; 115 or 230V single-phase 50/60Hz

Power consumption

1.5 kVA

Tool flange

ISO 9409-1-31.5-4-M5 mechanical interface

Certifications

SIL3 / PL e safety; CE; UL;

Cleanroom class

ISO 14644-1 Class 2

Safety functions

Safe limited speed; Safe stop; Safe zone; Safe tool

Communication interfaces

EtherCAT, Profinet, Ethernet/IP, SERCOS, PowerLink, real-time Ethernet

The Industrial Robot STAUBLI TX2-40 is a versatile 6-axis automation solution designed for precision tasks in demanding environments. With a payload capacity of 2.0 kg and a reach of 515 mm, this robot boasts a repeatability of 0.020 mm and a maximum speed of 8.6 m/s, making it ideal for high-speed applications. Rated IP65 for its arm and IP67 for the wrist, the TX2-40 is suitable for various mounting orientations and operates efficiently across a range of temperatures, ensuring reliable performance in industrial settings.

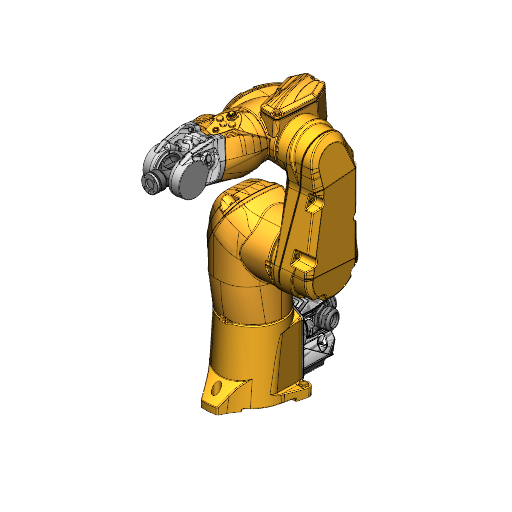

3D View

What are the technology applications of TX2-40?

STAUBLI TX2-40 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of STAUBLI TX2-40: Assembly, Dispensing, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.
