TECHMAN TM12SX

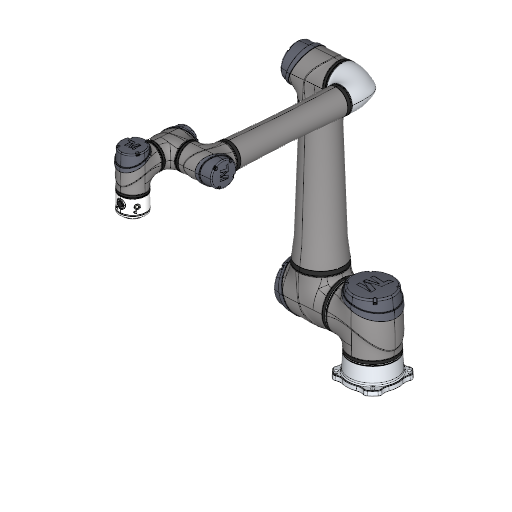

Cobot TECHMAN TM12SX

Specifications

Type

Cobot

Brand

TECHMAN

Model

TM12SX

Axes

6

Payload

12 kg

Reach

1300 mm

Repeatability

0.03 mm

Weight

33.3 kg

Speed at rated payload

1.3 m/s

IP rating

Robot Arm: IP65; Control Box and Robot Stick: IP54

Mounting orientation

Wall, Table, Ceiling

Controller

Techman / OMRON TM S-Series controller (AC or DC control box depending on unit)

Power supply

AC 100-240 VAC, 50/60 Hz or DC 24-60 VDC (varies by unit)

Power consumption

450 W (rated, AC mode)

Tool flange

ISO 9409-1-50-4-M6

Certifications

ISO 13849-1 (PL d, Cat.3), ISO 10218-1, UL (USA/Canada), CE; SEMI S2 optional

Cleanroom class

ISO Class 3

Safety functions

31 TÜV-certified safety functions; ISO 13849-1 PL d, Cat.3; compliant with ISO 10218-1

Communication interfaces

RS232 / RS-422 / RS-485, Ethernet, Modbus TCP/RTU (master & slave), PROFINET (optional), EtherNet/IP (optional)

Download TECHMAN TM12SX digital twin

Start for free
The Cobot TECHMAN TM12SX is a versatile 6-axis collaborative robot designed to enhance automation in industrial settings. With a payload capacity of 12 kg and a reach of 1300 mm, this robust robot offers exceptional precision with a repeatability of 0.03 mm. It features an IP65 rating for the robot arm and IP54 for the control box, making it suitable for a variety of mounting orientations including wall, table, and ceiling installations, all while ensuring compliance with key safety and communication standards.
3D View

What are the technology applications of TM12SX?

TECHMAN TM12SX is a versatile robot suitable for a wide range of industrial applications.

Primary applications of TECHMAN TM12SX:Assembly, Deburring, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplied or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

A sleek interface displays a robotic arm shaping a surfboard model.

TECHMAN TM12SX applications programmed with ENCY Robot

A robotic arm performs a pick-and-place operation with an object.

Pick-and-Place

A robotic arm polishes a circular metal surface with precision.

Polishing

Frequently asked questions

Can TECHMAN TM12SX be programmed with ENCY Robot?

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase TECHMAN TM12SX or request a quote, please contact the manufacturer or an authorized local supplier.
