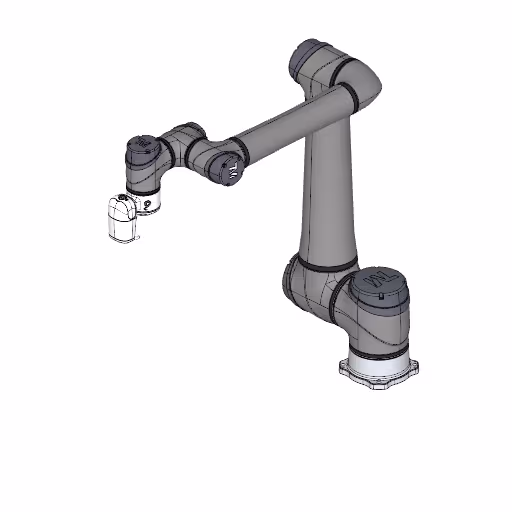

Cobot TECHMAN TM20S Specs and Applications

Specifications

Type

Cobot

Brand

TECHMAN

Model

TM20S

Axes

Payload

20 kg

Reach

1300 mm

Repeatability

0.03 mm

Weight

33.3 kg

Maximum speed

1.1 m/s

Speed at rated payload

1.1 m/s

IP rating

IP65 (robot arm) / IP54 (control box and robot stick)

Mounting orientation

Wall, Table, Ceiling

Controller

OMRON TMflow / TMScript / TMcraft (integrated controller for TM20S S-Series cobot)

Power supply

AC 200-230V, 50/60Hz

Tool flange

Digital I/O / Analog I/O / Camera mounting interface on ISO-9409-1 style robot flange

Certifications

CE (Machinery Directive), ISO 10218-1, ISO 13849-1, UL & CSA (North America)

Cleanroom class

ISO Class 3

Safety functions

33 safety functions certified by TÜV, PL d, Category 3 according to ISO 13849-1; compliant with ISO 10218-1

Communication interfaces

Ethernet (incl. Modbus TCP/RTU), optional PROFINET, optional EtherNet/IP

The Cobot TECHMAN TM20S is a versatile six-axis collaborative robot designed for high-performance industrial automation. With a payload capacity of 20 kg and a reach of 1300 mm, it delivers exceptional precision with a repeatability of 0.03 mm. Featuring an integrated OMRON controller, multiple mounting orientations, and robust safety certifications, the TM20S is ideal for a variety of applications in demanding environments, including cleanrooms classified ISO Class 3.

3D View

What are the technology applications of TM20S?

TECHMAN TM20S is a versatile robot suitable for a wide range of industrial applications.

Primary applications of TECHMAN TM20S: Assembly, Dispensing, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.
