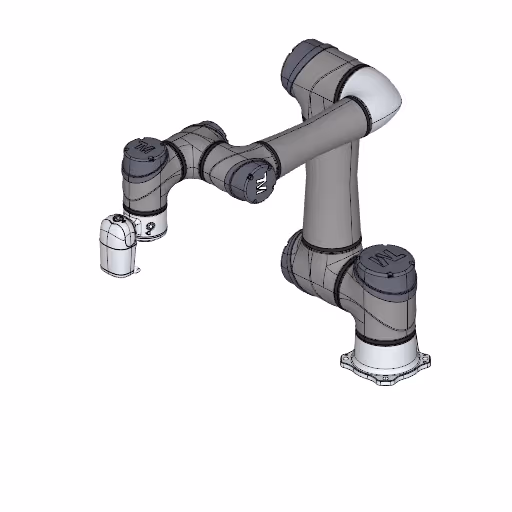

Cobot TECHMAN TM5S Specs and Applications

Specifications

Type

Cobot

Brand

TECHMAN

Model

TM5S

Axes

Payload

5 kg

Reach

946 mm

Repeatability

0.03 mm

Weight

23.9 kg

Maximum speed

4 m/s

Speed at rated payload

1.4 m/s

IP rating

IP65 for Robot Arm; IP54 for Control Box, Robot Stick ; TM Screen also IP54

Mounting orientation

Wall, Table (floor/pedestal), Ceiling

Controller

Built-in Omron/TM Robot S-Series controller version 5.0 (TMflow/TMScript/TMCraft)

Power supply

100-240 VAC, 50/60 Hz (AC Units) ; 24-60 VDC or 48-60 VDC (DC Units)

Power consumption

220 W

Tool flange

Standard TM S-Series tool flange compatible with OnRobot’s TM Tool Flange Connection (i.e. direct tool connector without external wiring)

Certifications

ISO 13849-1 (PL d, Cat.3), ISO 10218-1, ISO/TS 15066, UL1740, CAN/CSA Z424-14, TÜV safety certification; SEMI S2 optional

Cleanroom class

ISO Class 3

Safety functions

31 TÜV-certified safety functions; certified PL d, Cat.3 per ISO 13849-1; meets ISO 10218-1

Communication interfaces

RS-232 / RS-422 / RS-485, Ethernet, Modbus TCP & RTU (master & slave), PROFINET (optional), EtherNet/IP (optional)

The Cobot TECHMAN TM5S is a highly efficient 6-axis collaborative robot designed for versatile industrial automation applications. With a payload capacity of 5 kg and a reach of 946 mm, this model ensures precise operation with a repeatability of 0.03 mm. Its robust IP65-rated robot arm and integrated Omron/TM Robot S-Series controller provide reliable performance, while various mounting orientations and communication interfaces facilitate seamless integration into diverse production environments.

3D View

What are the technology applications of TM5S?

TECHMAN TM5S is a versatile robot suitable for a wide range of industrial applications.

Primary applications of TECHMAN TM5S: Assembly, Deburring, Dispensing, Machine Tending, Pick and place. But we recommend to consult with your robot supplier or the manufacturer.
