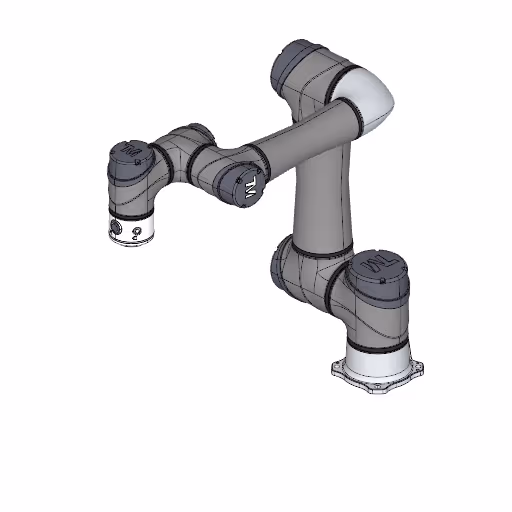

Cobot TECHMAN TM5SX Specs and Applications

Specifications

Type

Cobot

Brand

TECHMAN

Model

TM5SX

Axes

Payload

5 kg

Reach

946 mm

Repeatability

0.03 mm

Weight

23.9 kg

Maximum speed

1.4 m/s

Speed at rated payload

1.4 m/s

IP rating

IP65 for Robot Arm; IP54 for Control Box and Robot Stick

Mounting orientation

Wall, Table, Ceiling

Controller

TM AI Cobot S Series Controller (integrated with Robot Stick / Control Box)

Power supply

100-240 VAC, 50/60 Hz (Regular Model); 22-60 VDC (Mobile / DC-powered Model)

Power consumption

220 W

Tool flange

ISO 9409-1-50-4-M6

Certifications

CE; TÜV-certified ISO 13849-1, ISO 10218-1; UL1740; CAN/CSA Z424-14 (R2019); SEMI S2 (optional)

Cleanroom class

ISO Class 3

Safety functions

Up to 31 safety functions certified by TÜV; PL d, Cat.3 according to ISO 13849-1; compliant with ISO 10218-1

Communication interfaces

RS-232, Ethernet, Modbus TCP/RTU (master & slave), PROFINET (optional), EtherNet/IP (optional)

The Cobot TECHMAN TM5SX is a versatile 6-axis robotic arm designed for industrial automation with a payload capacity of 5 kg and a reach of 946 mm. Engineered for efficiency, this cobot offers a maximum speed of 1.4 m/s and exceptional repeatability of 0.03 mm, making it suitable for precise applications. With an IP65 rating for the robot arm and IP54 for the control box, it is adaptable to various mounting orientations, including wall, table, and ceiling, while ensuring compliance with multiple safety standards and certifications.

3D View

What are the technology applications of TM5SX?

TECHMAN TM5SX is a versatile robot suitable for a wide range of industrial applications.

Primary applications of TECHMAN TM5SX: Assembly, Deburring, Dispensing, Machine Tending, Pick and place. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

TECHMAN TM5SX applications programmed with ENCY Robot

Pick and place

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase TECHMAN TM5SX or request a quote, please contact the manufacturer or an authorized local supplier.
