TECHMAN TM5X-700

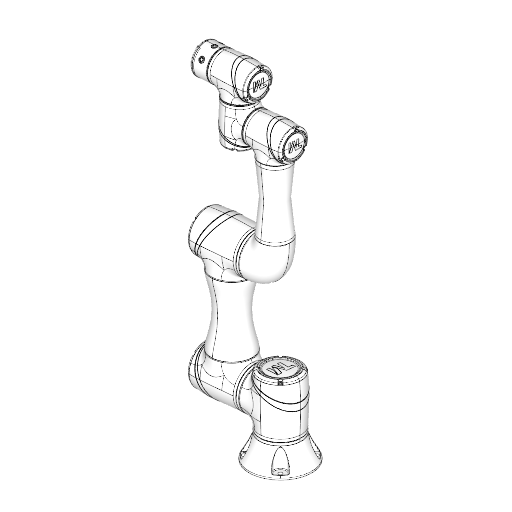

Cobot TECHMAN TM5X-700

Specifications

Type

Cobot

Brand

TECHMAN

Model

TM5X-700

Axes

6

Payload

6 kg

Reach

700 mm

Repeatability

0.05 mm

Weight

21.8 kg

Speed at rated payload

1.1 m/s

IP rating

IP54 (robot arm); IP32 (control box); IP40 (robot stick)

Mounting orientation

Wall, Table, Ceiling

Controller

TMflow-based control system (Techman Robot control box)

Power supply

100-240 VAC, 50/60 Hz or 22-60 VDC

Power consumption

220 W

Tool flange

ISO 9409-1-50-4-M6

Certifications

CE; ISO 10218-1:2011; ISO/TS 15066:2016; SEMI S2 (optional)

Cleanroom class

ISO Class 3

Safety functions

Complies with ISO 10218-1:2011 & ISO/TS 15066:2016; collision detection with emergency stop; speed limits in collaborative workspace

Communication interfaces

RS232; Ethernet (master); Modbus TCP/RTU (master & slave); PROFINET (optional); EtherNet/IP (optional)

Download TECHMAN TM5X-700 digital twin

Start for free
The Cobot TECHMAN TM5X-700 is a versatile 6-axis collaborative robot designed for precision and efficiency in industrial automation. With a payload capacity of 6 kg and a reach of 700 mm, this robot achieves a remarkable repeatability of 0.05 mm, making it ideal for various applications. Featuring a robust IP54 rating for the robot arm and an IP32 rating for the control box, the TM5X-700 ensures reliable performance in diverse environments while adhering to safety standards such as ISO 10218-1:2011 and ISO/TS 15066:2016.
3D View

What are the technology applications of TM5X-700?

TECHMAN TM5X-700 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of TECHMAN TM5X-700:Assembly, Deburring, Dispensing, Machine Tending, Pick and place. But we recommend to consult with your robot supplied or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

A sleek interface displays a robotic arm shaping a surfboard model.

TECHMAN TM5X-700 applications programmed with ENCY Robot

A robotic arm performs a pick-and-place operation with an object.

Pick-and-Place

Frequently asked questions

Can TECHMAN TM5X-700 be programmed with ENCY Robot?

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase TECHMAN TM5X-700 or request a quote, please contact the manufacturer or an authorized local supplier.
