Cobot TECHMAN TM6S Specs and Applications

Specifications

Type

Cobot

Brand

TECHMAN

Model

TM6S

Axes

Payload

6 kg

Reach

1800 mm

Repeatability

0.03 mm

Weight

35.5 kg

Maximum speed

4.5 m/s

Speed at rated payload

1.1 m/s

IP rating

IP65 (robot arm), IP54 (AC control box and Robot Stick)

Mounting orientation

Floor, Table, Wall, Ceiling

Controller

TMflow (flowchart-based), TMScript (script-based), TMCraft (developer-based)

Power supply

100-240 VAC, 50/60 Hz

Power consumption

400 W

Certifications

ISO 10218-1; ISO 13849-1 (Cat.3 PL d); UL & CSA; CE; CAN/CSA Z424-14 (R2019); optional NSF/ANSI 169, SEMI S2

Cleanroom class

ISO Class 3

Safety functions

33 TÜV-certified safety functions; ISO 10218-1; ISO 13849-1 Category 3, Performance Level d; UL & CSA certifications

Communication interfaces

RS-232/RS-422/RS-485, Ethernet, Modbus TCP/RTU (master & slave), optional PROFINET, EtherNet/IP, possible other network cards

The Cobot TECHMAN TM6S is a versatile 6-axis collaborative robot designed for efficient industrial automation. With a payload capacity of 6 kg and a reach of 1800 mm, it provides high precision with a repeatability of 0.03 mm while maintaining a maximum speed of 4.5 m/s. Equipped with robust safety features and a range of communication interfaces, the TM6S is suitable for various mounting orientations and is ideal for cleanroom applications adhering to ISO Class 3 standards.

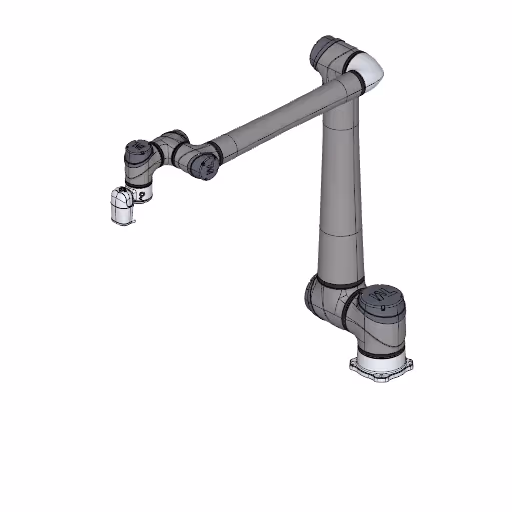

3D View

What are the technology applications of TM6S?

TECHMAN TM6S is a versatile robot suitable for a wide range of industrial applications.

Primary applications of TECHMAN TM6S: Assembly, Deburring, Dispensing, Machine Tending, Pick and place. But we recommend to consult with your robot supplier or the manufacturer.
