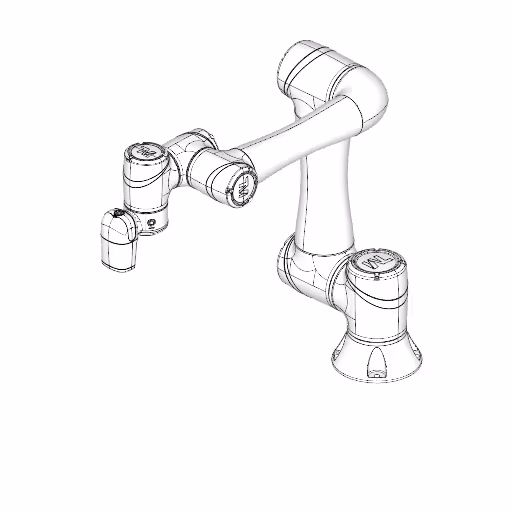

TECHMAN TM5-900

Cobot

TECHMAN6 axesDigital twin for ENCY Robot

About

The Cobot TECHMAN TM5-900 is a versatile six-axis collaborative robot designed for a wide range of industrial automation applications. With a payload capacity of 4 kg and a reach of 900 mm, it boasts impressive repeatability of 0.05 mm and a maximum speed of 4 m/s, making it ideal for precise and efficient operations. Engineered for both strength and flexibility, this robot offers multiple mounting orientations and adheres to strict safety standards, ensuring reliable performance in diverse working environments.

What are the technology applications of TM5-900?

TECHMAN TM5-900 is a versatile robot suitable for a wide range of industrial applications. Primary applications of TECHMAN TM5-900: Assembly, Deburring, Dispensing, Machine Tending, Pick and place. But we recommend to consult with your robot supplier or the manufacturer.

TECHMAN TM5-900 applications programmed with ENCY Robot

Pick and place

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase TECHMAN TM5-900 or request a quote, please contact the manufacturer or an authorized local supplier.

Download TECHMAN TM5-900 digital twin

Start for free

Specifications

General

Type: Cobot
Brand: TECHMAN
Model: TM5-900
Axes: 6

Performance

Payload: 4 kg
Reach: 900 mm
Repeatability: 0.05 mm
Weight: 22.6 kg
Maximum speed: 4 m/s
Speed at rated payload: 1.4 m/s

Environment

IP rating: IP54 (robot arm), IP32 (control box), IP40 (robot stick)
Mounting orientation: Wall, Table, Ceiling
Cleanroom class: ISO Class 3

Integration

Controller: TMflow (TM series controller, hardware version 3.2)
Power supply: 100-240 VAC, 50/60 Hz (or 22-60 VDC option)
Power consumption: 220 W
Tool flange: ISO 9409-1-50-4-M6 (4 M6 threaded holes, optional two position pins Ø6 mm)
Communication interfaces: RS232, Ethernet (master), Modbus TCP/RTU (master & slave), PROFINET (optional), EtherNet/IP (optional)
Safety functions: Collision detection with emergency stop; speed limits in collaborative workspace; compliant with ISO 10218-1 and ISO 13849-1 (Performance Level d)
Certifications: CE, SEMI S2 (optional), ISO 10218-1:2011, ISO/TS 15066:2016
