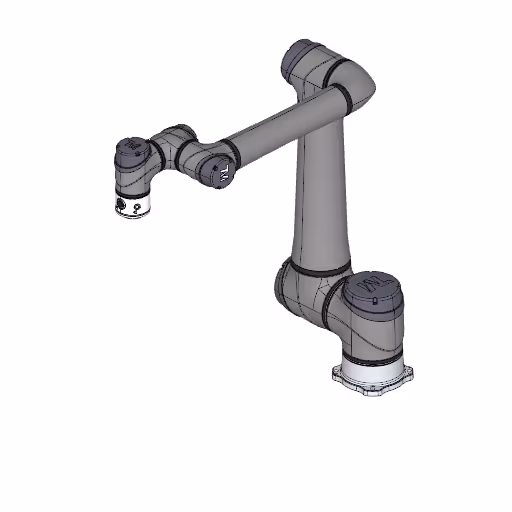

Cobot TECHMAN TM20SX Specs and Applications

Specifications

Type

Cobot

Brand

TECHMAN

Model

TM20SX

Axes

Payload

20 kg

Reach

1300 mm

Repeatability

0.05 mm

Weight

33 kg

Maximum speed

1.3 m/s

Speed at rated payload

1.3 m/s

IP rating

IP54 (robot arm), IP32 (control box), IP40 (robot stick)

Mounting orientation

Wall, Table, Ceiling

Controller

TMflow (with integrated Control Box and Robot Stick)

Power supply

100-240 VAC, 50/60 Hz or 24-60 VDC

Power consumption

300 W

Certifications

CE; SEMI S2 (optional); ISO/TS 15066; ISO 10218-1

Cleanroom class

ISO Class 3

Safety functions

Collision detection with emergency stop; complies with ISO 10218-1:2011 & ISO 13849-1

Communication interfaces

RS-232; Ethernet (master); Modbus TCP/RTU (master & slave); PROFINET (optional); EtherNet/IP (optional)

The Cobot TECHMAN TM20SX is a versatile 6-axis collaborative robot designed for industrial automation applications, offering a payload capacity of 20 kg and a reach of 1300 mm. Featuring an impressive repeatability of 0.05 mm and a maximum speed of 1.3 m/s, this 33 kg robot is perfect for various mounting orientations, including wall, table, and ceiling. With its integrated TMflow controller and robust safety features, the TM20SX meets strict industry standards and is suitable for cleanroom environments classified as ISO Class 3.

3D View

What are the technology applications of TM20SX?

TECHMAN TM20SX is a versatile robot suitable for a wide range of industrial applications.

Primary applications of TECHMAN TM20SX: Assembly, Deburring, Dispensing, Machine Tending, Pick and place. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

TECHMAN TM20SX applications programmed with ENCY Robot

Pick and place

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase TECHMAN TM20SX or request a quote, please contact the manufacturer or an authorized local supplier.
