Cobot TECHMAN TM5-700 Specs and Applications

Specifications

Type

Cobot

Brand

TECHMAN

Model

TM5-700

Axes

Payload

6 kg

Reach

700 mm

Repeatability

0.05 mm

Weight

22.1 kg

Maximum speed

4 m/s

Speed at rated payload

1.1 m/s

IP rating

IP54 (robot arm), IP32 (control box), IP40 (robot stick)

Mounting orientation

Wall, Table, Ceiling

Controller

Integrated Techman/Omron control box with TMflow environment

Power supply

100-240 VAC, 50/60 Hz or 22-60 VDC

Power consumption

220 W

Tool flange

Ø50 mm P.C.D. 50; M6 x 8 (4-hole) standard mounting flange

Certifications

CE, ISO 10218-1, ISO/TS 15066, EN ISO 13849-1 PL d, IEC 61508 SIL 2, SEMI S2 (optional)

Cleanroom class

ISO Class 3

Safety functions

Collision detection with emergency stop; Complies with ISO 10218-1 & ISO/TS 15066; Speed limiting in collaborative workspace

Communication interfaces

RS-232C, Ethernet TCP/IP, Modbus TCP/RTU (Master & Slave), PROFINET (optional), EtherNet/IP (optional)

The Cobot TECHMAN TM5-700 is a versatile 6-axis collaborative robot designed for industrial automation applications. With a payload capacity of 6 kg and a reach of 700 mm, it offers exceptional precision with a repeatability of 0.05 mm and speeds of up to 4 m/s. Featuring an integrated Techman/Omron control box and multiple mounting orientations, this robot is ideal for various settings while ensuring compliance with safety standards and robust performance in cleanroom environments (ISO Class 3).

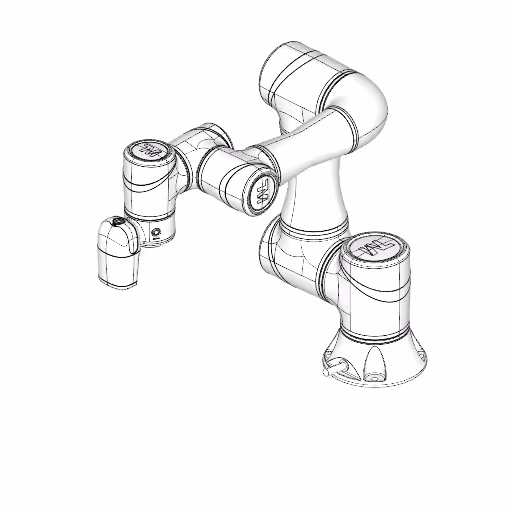

3D View

What are the technology applications of TM5-700?

TECHMAN TM5-700 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of TECHMAN TM5-700: Assembly, Deburring, Dispensing, Machine Tending, Pick and place. But we recommend to consult with your robot supplier or the manufacturer.
