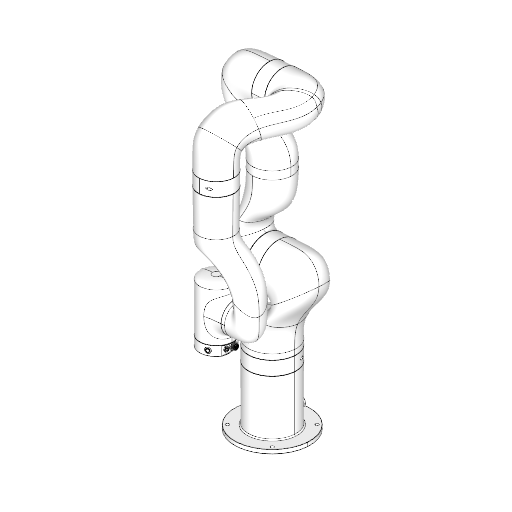

UFACTORY 850(FX85)

Cobot

uFactory6 axesDigital twin for ENCY Robot

About

The Cobot UFACTORY 850 (FX85) is a versatile six-axis robotic arm designed for industrial automation applications, capable of handling payloads of up to 5 kg with a reach of 850 mm. With exceptional repeatability of 0.02 mm and a maximum speed of 1 m/s, this compact unit weighs only 20 kg and can be mounted in any direction to optimize workspace configuration. It adheres to strict safety and EMC standards, offering advanced safety functions such as emergency stop and collision detection, making it an ideal choice for cleanroom environments classified under ISO Class 5.

What are the technology applications of 850(FX85)?

UFACTORY 850(FX85) is a versatile robot suitable for a wide range of industrial applications. Primary applications of UFACTORY 850(FX85): Deburring, Grinding, Multiaxis cutting, Polishing, Robot milling. But we recommend to consult with your robot supplier or the manufacturer.

UFACTORY 850(FX85) applications programmed with ENCY Robot

Multiaxis cutting

Polishing

Robot milling

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase UFACTORY 850(FX85) or request a quote, please contact the manufacturer or an authorized local supplier.

Download UFACTORY 850(FX85) digital twin

Start for free

Specifications

General

Type: Cobot
Brand: uFactory
Model: 850(FX85)
Axes: 6

Performance

Payload: 5 kg
Reach: 850 mm
Repeatability: 0.02 mm
Weight: 20 kg
Maximum speed: 1 m/s
Speed at rated payload: 1 m/s

Environment

IP rating: IP40
Mounting orientation: Any Direction
Cleanroom class: ISO Class 5

Integration

Controller: AC Controller or DC Controller (both support input/output as specified)
Power supply: 48V DC, 20.8A
Power consumption: 240 W (typical)
Tool flange: DIN ISO 9409-1-50-4-M6
Communication interfaces: Ethernet (Private TCP), Modbus TCP, RS-485
Safety functions: Emergency Stop (Stop Category 1), Protective Stop (Stop Category 2), configurable safety boundary, reduced mode, collision detection, self-collision detection
Certifications: EN 61000-6-2:2019, EN 61000-6-4:2019, EMC standards for functional safety
