The narrative below stays practical and connected:
Introduction → Safety → Machine/Material → CAD (DfM) → CAM (strategies + parameters) → Setup/Offsets → Dry Run → Production Run → Quality Control → Finishing/Cleaning → Reporting.
Every job begins with a request, even if you are your own “customer.” In a few sentences, capture function, critical features, material/stock, finish, quantity, and any traceability or revision rules. This miniature brief anchors decisions about tools, workholding, machine setup, and inspection. It also frames which operations belong on a mill, CNC router, or lathe, because not every geometry — or budget — fits one machine type. If you intend to operate a compact router on wood or plastic, note those constraints now; if you plan a metal part on a benchtop mill, state that too. The goal is clarity so you can pick the best fit process before touching CAD.
Safety is a habit, not a checkbox. Keep guards closed during motion, verify the emergency stop at the start of a shift, and maintain dry floors with tidy cables and hoses. Chips are sharp and hot — clear them only with the spindle stopped and the door open. Coolant needs correct concentration and skin-safe handling. Hearing protection is wise on heavier cuts; safety glasses are mandatory at the machine. Good lighting and labeled drawers for tools and gauges reduce stress and mistakes, which is a safety win and a quality win. These rules apply whether you’re using a small router on plywood or a knee mill on aluminum — the energy at the tool is real in both cases.
Quick essentials to internalize:
Pick the lightest setup that still delivers accuracy and stability. Desktop CNC router machines excel in including wood and plastics; compact mills add rigidity, flood coolant, and more repeatable probing for metals. If you’re learning, aluminum 6061, acrylic, and plywood are forgiving and make feeds, speeds, and chip behavior obvious. As you gain control, step into mild steel and tighter tolerances. Consider the pros and cons of each platform: routers offer speed and envelope for panels; mills favor stiffness, tool options, and bore quality. Whatever you choose, confirm the controller can read your post (common G-code) and that the CNC controller exposes the overrides and status you need while learning.
Starter pairings that work well:
| Material | Typical Machine | Cutter & Flutes | Workholding | Chip/Coolant |
|---|---|---|---|---|
| Aluminum 6061 | 3-axis mill or rigid cnc router | 2–3-flute carbide cutting tool | Vise or clamps on parallels | Mist, flood, or strong air |
| Mild Steel (1018) | Rigid 3-axis mill | 4-flute carbide end mill | Vise with step jaws | Flood coolant preferred |
| Acrylic | Router or light mill | 1–2-flute O-flute | Vacuum or tape-fixturing | Dry with strong air |
| Plywood/Laminates | Router | Compression or downcut router bit | Vacuum table or spoilboard clamps | Dust extraction, air |
In CAD, design the workpiece around machining reality so CAM stays simple and the machine runs calmly. Choose a clean datum scheme that matches how you’ll hold and measure the part; keep minimum slot widths at or above the intended tool diameter; add inside corner fillets at least equal to the finishing tool’s radius; and avoid ultra-thin walls and floors on first articles. Prefer standard drill sizes and moderate depths; deep holes and micro-features demand extra care. Tighten tolerances only where function requires; leave room for a light finish pass elsewhere. If you plan to engrave, use single-line or stick fonts with shallow depths so burrs stay minimal. Thoughtful CAD reduces risk on all axes and shortens later iterations of the coordinate system and offsets on the machine.

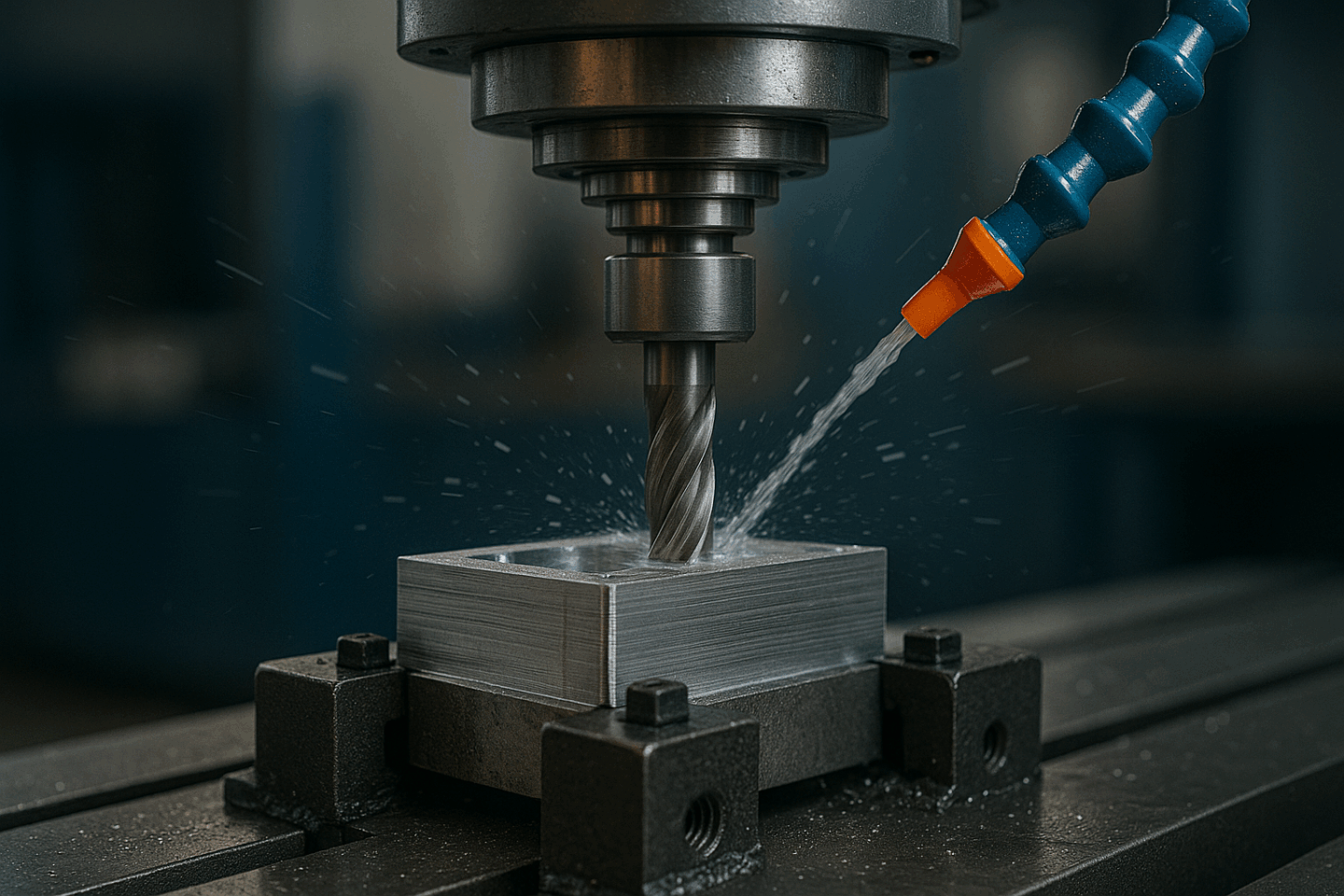

Import the model into CAM software and plan a stable sequence from rigid to delicate features. Face the stock, rough with wide engagement to remove material efficiently, rest-rough where smaller tools must reach, contour to final size, drill/peck, and apply light finishing passes. Keep toolpaths collision-aware by modeling clamps, jaws, and stops; then simulate to catch air-cuts and interference. Post to standard G-code so the CNC controller executes predictably. Start from manufacturer data for surface speed and chipload; adjust in small steps while watching sound, burrs, and spindle load. For 3D forms, use ball-nose finishing; for flats and walls, standard end mills are most efficient. Limit tool stick-out; stiffness is free accuracy. Whether you use integrated CNC software or standalone tools like ENCY or Mastercam, the principles are the same: clear chips, manage heat, and protect the edge.
Setup translates your plan to the physical world. Mount the stock so cutting forces push down into support, not up into empty space. Choose workholding (vise, clamps, vacuum) that fits the part and keeps jaws, screws, and hoses out of the toolpath. Install tools in holders with consistent gauge lengths when possible. Define a coordinate system (your WCS) on a logical corner, face, or bore you can probe reliably, and remember it is distinct from the machine’s own reference in numerical control. Measure tool-length offsets with a probe, tool setter, or careful touch-off, and check that units and origin match your post. A quick photo of the machine setup with notes on vise location and stop position makes future repeats painless, whether on a hobby router or a benchtop milling machine.
Pre-run checklist (keep it short and habitual):
A disciplined prove-out prevents expensive surprises. Load the CNC program and, if your control allows, run a backplot. On the machine, make a safe-height run in the air first to watch motions around clamps and tall features. Use single-block mode for the first minutes, confirm correct tools are called, and verify that rapid moves clear hardware. Bring Z down in small increments until you just kiss the top of stock with a face pass. This is also the moment to test overrides and ensure you can pause, retract, and recover cleanly — core basics for anyone learning to use a CNC machine.
Move from prove-out to repeatable production by locking in what worked. Complete a first-off, measure critical dimensions, and adjust tool or work offsets as needed. Save the exact offsets and any feed/speed tweaks with the posted code so that a later beginner can get the same result. For multiples, add a simple tool-life rule (e.g., replace a small end mill after a defined number of parts) and control chips so they don’t recut. Check coolant level and concentration periodically. If you juggle families of workpieces, consider soft jaws or pin fixtures that keep the same WCS; repeatability is how you operate efficiently.
Quality works best as a continuous practice. Verify key features right after the operation that creates them: measure a bore after drilling and boring, not at the very end. Use calipers for quick checks, micrometers for tight dimensions, gauge pins for small holes, and a height gauge on a surface plate for steps and flatness. Decide in advance which dimensions are critical-to-function and inspect those on 100% of first-offs, then on a reasonable sampling plan. Record actual values, not just pass/fail, so you can spot drift and nudge offsets before scrap appears. Even in small shops, this discipline turns manual machining intuition into data you can trust on computer numerical control equipment.
Most parts benefit from a quick deburr and wash. Add a light machine chamfer where appropriate, then remove remaining burrs by hand. Clean chips and coolant residue; dry thoroughly so coatings and labels adhere. Aluminum accepts a gentle Scotch-Brite polish; plastics prefer mild handling to avoid haze. Good presentation is part of quality and also makes measurement easier by removing fuzz and glare.
Close the loop with a compact record: final CAD model, the CAM file and post settings, the exact G-code that produced the accepted parts, the tool list with holders and measured lengths, WCS and offsets, coolant notes, and the first-off inspection sheet with actual numbers. Keep one clear photo of the setup showing vise position, stops, clamps, and accessible axes. This lightweight report converts a one-time win into a stable process you can repeat or hand off, whether the next run is on a hobby router or a production CNC machine.
Professional results grow from a calm, repeatable method: understand the request, design in CAD for machining, program deliberate toolpaths in CAM software, set a reliable coordinate system, prove safely, measure often, and document what worked. Follow this flow and you will get from first chips to dependable, production-grade parts with confidence — on anything from a desktop router to a rigid CNC mill.
