Selective Compliance Assembly (or Articulated) Robot Arms (SCARA) have established themselves as a pragmatic and technically efficient solution for planar automation tasks. Designed for operations that require high-speed horizontal motion with precise vertical placement, these industrial robots are frequently integrated into assembly lines, packaging stations, and micro-manufacturing cells. Their architecture is particularly effective in applications demanding high throughput, minimal cycle time, and repeatable motion accuracy in two-dimensional Cartesian workspaces.
The fundamental distinction of SCARA robots lies in their selective compliance. The SCARA mechanism provides high rigidity along the vertical (Z-axis), ensuring precise vertical positioning, and selective compliance in the horizontal (X-Y) plane, allowing absorption of minor positional misalignments during assembly tasks. This mechanical characteristic makes these industrial robots particularly suitable for vertical assembly operations such as press-fitting or insertion tasks.
From a kinematic perspective, SCARA robots typically operate with four degrees of freedom:
The motion is confined to a cylindrical or quasi-cylindrical workspace, with the arm operating from a fixed base. This design ensures minimal dynamic inertia and short acceleration ramp-up times, enabling cycle times under one second in optimized configurations.
Power transmission is usually achieved via harmonic drives or direct-drive motors, with absolute encoders providing closed-loop position feedback. The combination of mechanical rigidity, reduced degrees of freedom, and optimized inertia enables high acceleration profiles with consistent positional repeatability in the order of ±0.01–0.02 mm.

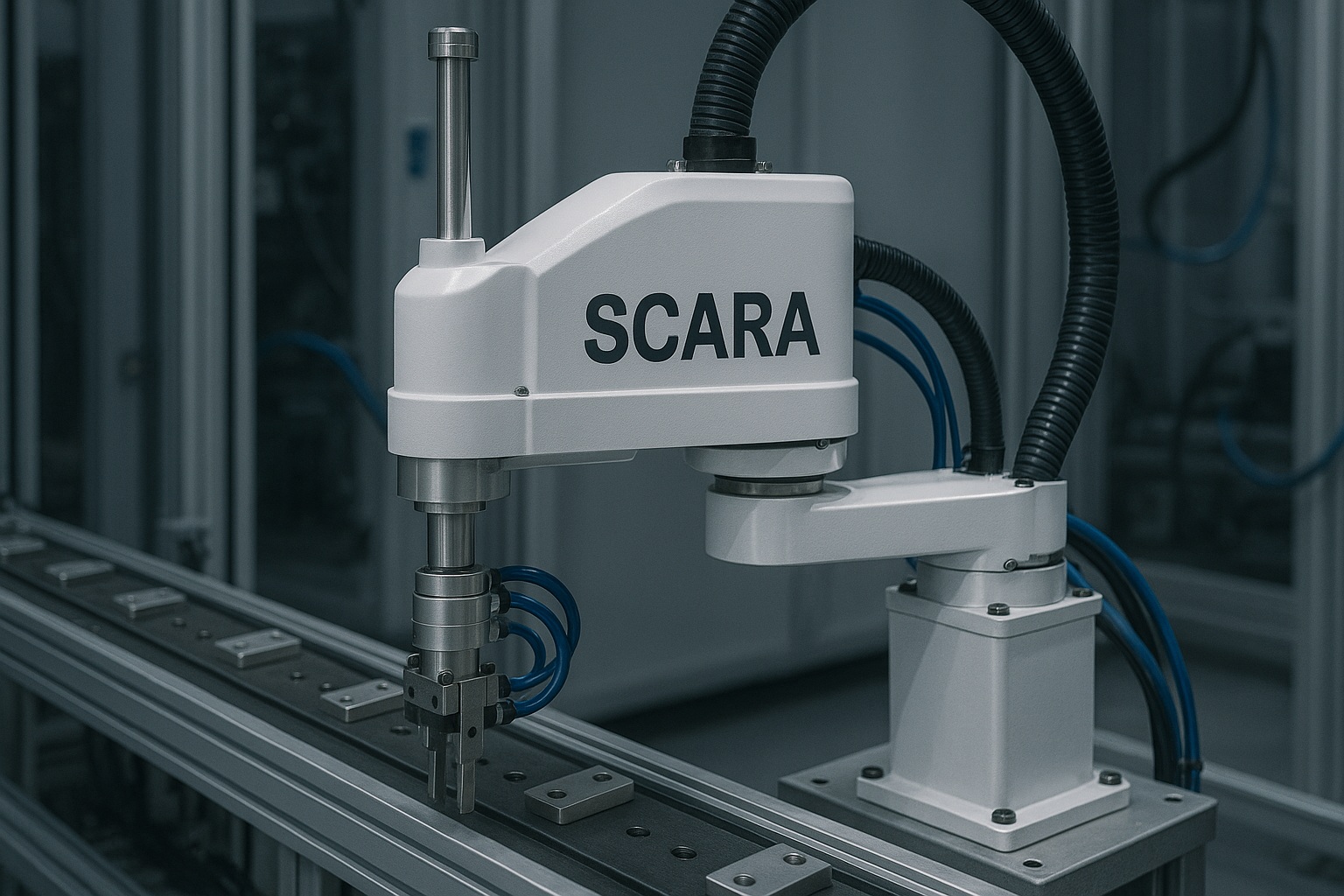

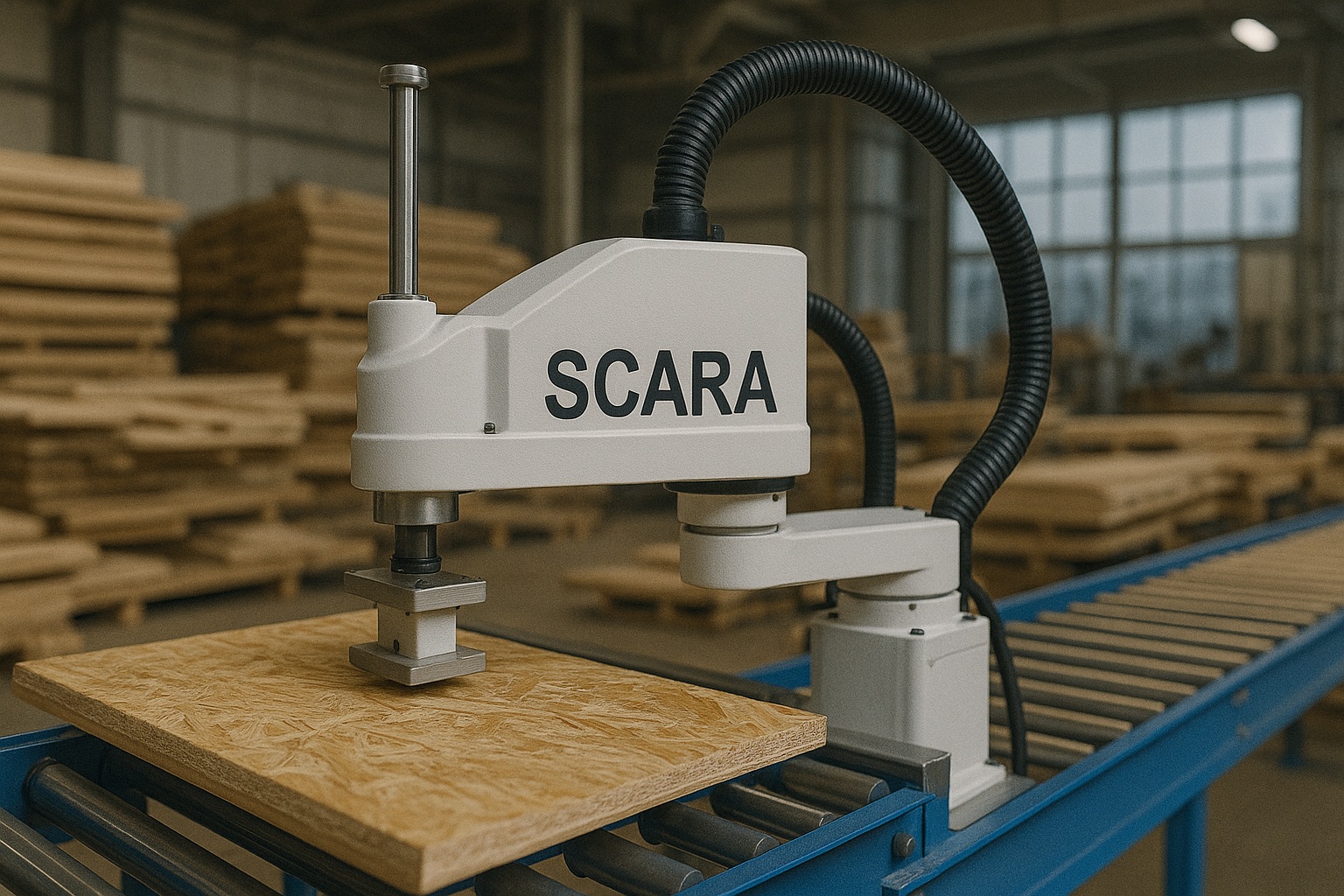

The functionality of a SCARA robot is defined by the interplay of its structural, mechanical, and control subsystems, each contributing to its characteristic performance in planar motion and vertical manipulation. At the core of the system lies the mechanical arm, composed of two rigid rotary links connected via articulating joints. These links form a horizontal plane of motion, allowing for rapid and precise positioning along the X and Y axes. The arm’s vertical movement is enabled by a linear prismatic joint, responsible for controlled displacement along the Z-axis. The entire assembly is mounted to a stationary base, ensuring stability during high-speed operations and minimizing dynamic vibration.
At the distal end of the arm is the tool flange, to which the end effector is attached. This end effector can take various forms—such as a pneumatic gripper, vacuum cup, or electrically actuated tool—depending on the specific task, whether it be pick-and-place, insertion, fastening, or sorting. The final rotational axis, often designated as θ3, provides orientation control for the tool, enabling precise alignment of parts or controlled screwdriving motion.
Motion is generated and precisely controlled by a set of servo drives and actuators, typically one per axis. These motors are brushless, digitally controlled, and integrated with high-resolution encoders, allowing for closed-loop feedback. Gear reduction units, such as harmonic drives or cycloidal reducers, are employed to increase torque and reduce backlash, which is critical for operations demanding high repeatability.
The robot’s behavior is orchestrated by its control unit, a dedicated real-time industrial controller responsible for interpolating trajectories, managing joint coordination, and executing user-defined programs. This controller processes motion commands, handles digital and analog I/O, manages communication with external devices, and enforces safety routines. It is often programmable through structured environments and supports advanced features such as path blending, soft limits, and dynamic reconfiguration.
Supporting these main subsystems are feedback mechanisms that include encoders, resolvers, limit switches, and safety interlocks. Together, they ensure spatial awareness of the arm’s position and velocity, detect deviations from expected motion profiles, and prevent unintended behaviors. Accurate calibration of the Tool Center Point (TCP) is essential in this context, as it defines the exact spatial relationship between the robot’s flange and the tip of the end effector.
Power and signal transmission is handled through flexible cabling systems, which include strain-relieved harnesses and cable chains to accommodate joint rotation without wear or interference. Pneumatic lines, if required, are routed alongside electrical connections, enabling actuation of tooling without hindering motion freedom.
Each of these components—mechanical, electrical, and computational—works in coordination to ensure that the SCARA robot can execute high-speed, high-precision planar tasks with stability, repeatability, and control accuracy that meets the demands of modern manufacturing.
The operational envelope of SCARA robots is optimized for planar trajectories with vertical point-to-point transitions. In comparison to six-axis articulated arms, SCARA mechanisms offer superior speed, lower control complexity, and reduced integration overhead—albeit at the expense of full 3D spatial reach.
To contextualize this, the following table outlines performance-relevant characteristics:
| Parameter | SCARA Robot | 6-Axis Robot |
|---|---|---|
| Degrees of Freedom | 4 (θ1, θ2, Z-axis, θ4) | 6 (Full 3D articulation) |
| Motion Range | Cylindrical (planar + vertical) | Full 3D, unrestricted |
| Repeatability | High (±0.01–0.02 mm typical) | High, variable with position and pose (±0.02–0.05 mm typical) |
| Cycle Time | Very short (<1 s typical) | Moderate to long, due to complex joint coordination |
| Payload Capacity | Low to medium (typically 1–20 kg) | Medium to high (5–200+ kg) |
| Workspace Optimization | Compact, minimal footprint (top or side-mounted) | Requires larger workspace and safety clearances |
| Control Complexity | Lower complexity (simplified inverse kinematics) | Higher complexity (multi-axis coupling) |
While six-axis robots are more versatile in terms of part orientation and multi-plane assembly, SCARA excels in tasks where planar accuracy, speed, and cost-efficiency are dominant factors.
SCARA robots are heavily employed in sectors where the workpiece orientation is fixed and process operations are repeatable. Their ability to perform rapid horizontal displacements with vertical insertion makes them particularly well-suited to the following domains:
In electronics manufacturing, SCARA robots are widely used for PCB component placement, connector insertion, soldering prep, and micro-fastening. The ability to maintain sub-millimeter repeatability at high cycle rates ensures high-quality yield in precision assembly.
Within medical device production, SCARA units perform critical operations such as syringe assembly, blister packaging, and cap alignment—often within cleanroom-rated enclosures. Their compact footprint allows multi-robot cells to be configured within ISO Class 7–8 environments.

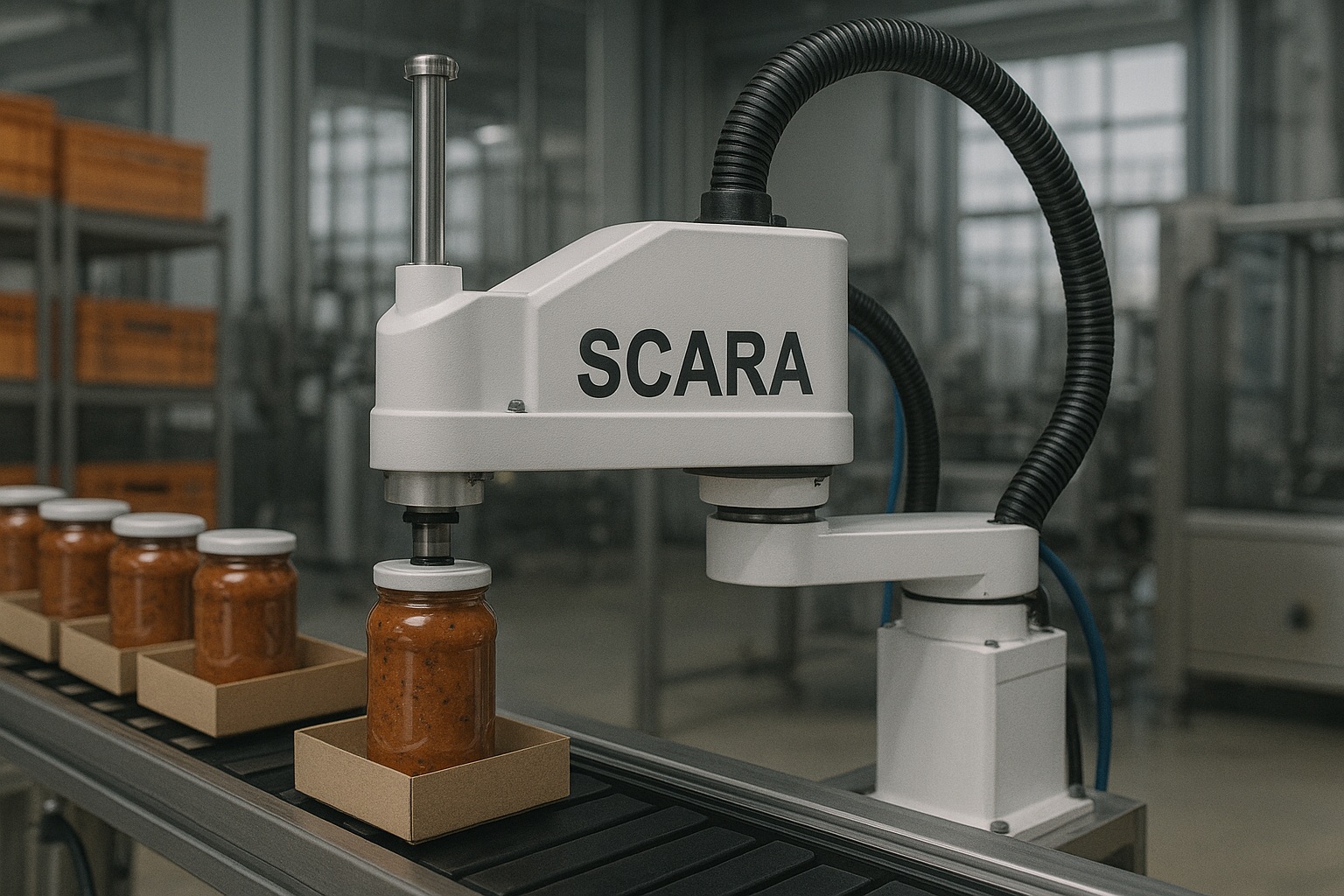

In food and beverage processing, SCARA mechanisms handle high-speed sorting, portioning, and primary packaging. Their stainless-steel enclosures and IP-rated protection enable washdown compatibility where hygiene protocols are stringent.
In consumer electronics and small appliance assembly, SCARA systems are deployed for sequential fastening, small-part kitting, and high-volume inspection using integrated vision.
These applications leverage the robot’s dynamic stability, low cycle latency, and cost-efficient deployment in modular production lines.
SCARA robot programming is typically accomplished through either online point teaching or offline CAD/CAM-based path planning, depending on the application complexity and available tooling.
Online programming involves sequentially guiding the robot to required points using a teach pendant and recording joint configurations. This method is effective for simple trajectories and one-off setups but can be time-consuming and error-prone in complex tasks or high-mix production.

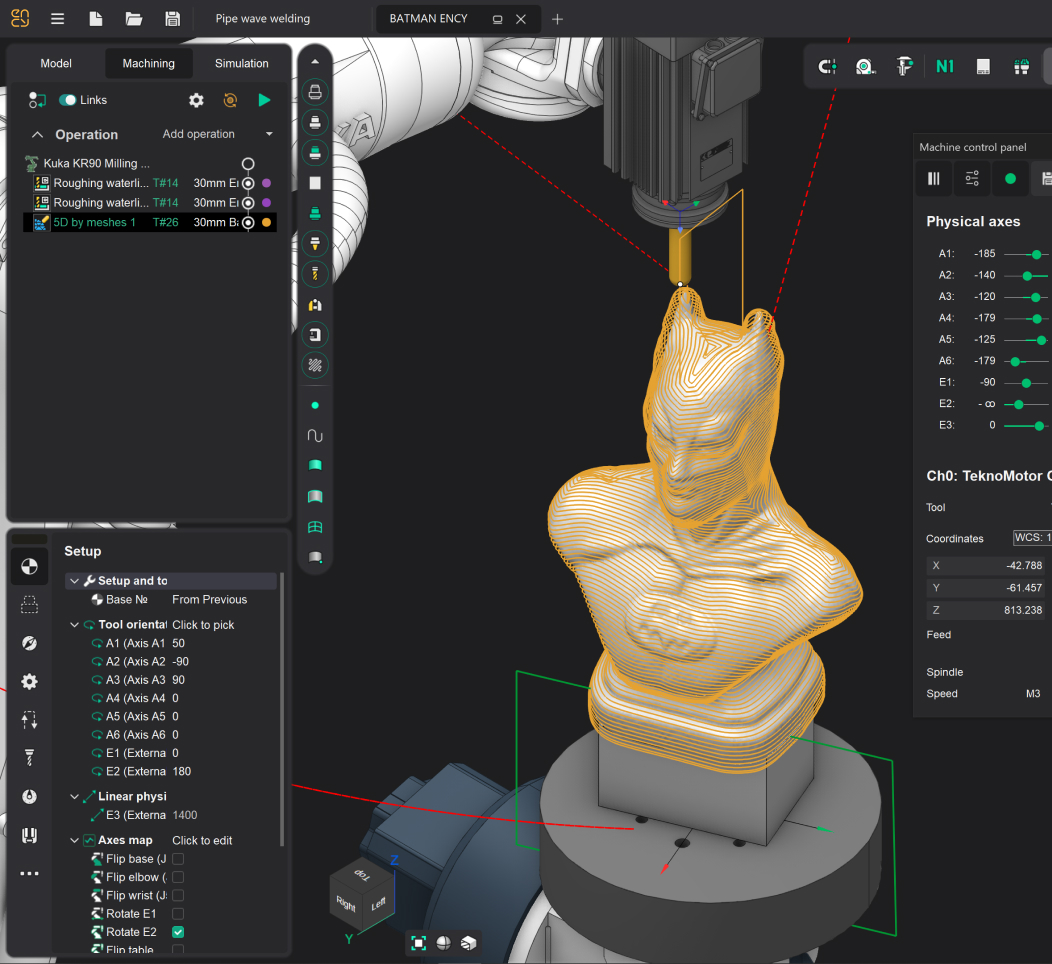

Offline programming (OLP), by contrast, allows full trajectory simulation and optimization in a virtual 3D environment. Engineers define toolpaths, simulate reachability, detect potential collisions, and export motion sequences directly to the controller. OLP significantly reduces machine downtime and enhances first-time-right execution, particularly when tool center point (TCP) precision and path smoothness are critical.
Effective OLP implementation for SCARA robots requires accurate kinematic modeling, workspace digitization, and integration of real-world constraints such as joint limits, singularities, and dynamic response thresholds.
Successful SCARA robot integration requires alignment between mechanical design, control systems, and process engineering. Key integration parameters include:
Robot controllers must be configured for real-time motion coordination, emergency stop zoning, and integration with supervisory PLC/SCADA systems for production traceability and remote diagnostics.
Training requirements are minimal relative to articulated systems; however, personnel should be proficient in Cartesian frame manipulation, basic inverse kinematics, and fault recovery procedures.
Despite the mechanical and control simplicity of SCARA robots, integration failures still occur — often due to misaligned expectations or improper planning. Below are some of the most frequent mistakes observed during deployment, with engineering solutions to prevent them.
1. Inadequate Workspace Layout and Reach Planning: Placing workpieces or fixtures outside the robot’s optimal working envelope leads to inefficient trajectories, joint saturation, or unreachable points.
Perform a digital reachability study before installation. Validate all part positions within the robot’s effective range, including tool orientation clearance and Z-axis access.
2. Incorrect Tool Center Point (TCP) Calibration: Skipping accurate TCP calibration introduces errors in positioning, causing misalignment, insertion failures, or accumulated offsets in multi-point tasks.
Use standardized TCP calibration procedures, such as the “two-point probe” or “pivot rotation” method, and verify the result with test runs under load.
3. Oversized Payload or Inertia: Exceeding the robot’s rated payload or dynamic torque limit reduces repeatability, increases servo stress, and accelerates mechanical wear.
Include the full effective load in calculations — including grippers, cabling, and part mass. Check dynamic limits, not just static payload specs, and consider torque safety factors.
4. Poor Signal and I/O Synchronization: Delay or jitter in synchronization with conveyors, sensors, or actuators leads to mistimed operations or cycle disruptions.
Use deterministic communication protocols (e.g., EtherCAT) and design a robust I/O interface with handshaking logic, buffer states, and failure detection.
5. Lack of Operator Training and Diagnostics: Assuming SCARA simplicity removes the need for formal training can lead to misuse, improper reprogramming, or unsafe operation.
Provide targeted training on programming interfaces, manual control procedures, safety zones, and error recovery. Include digital diagnostics tools in the commissioning package.
By addressing these challenges during the design and early commissioning phase, integrators can achieve faster ramp-up, minimize downtime, and extend the operational lifespan of the robotic cell.
Due to their compact structure and rapid commissioning potential, SCARA robots demonstrate a favorable ROI curve, particularly in high-volume, low-variability environments.
Consider a representative application in automated screwdriving:
Beyond labor savings, SCARA systems improve process capability indices (Cp/Cpk), reduce rework, and stabilize takt time, contributing to lean manufacturing objectives.
SCARA robots occupy a unique position in the industrial automation landscape. While not designed for universal flexibility, they offer unmatched efficiency in structured, high-speed operations. Their predictable kinematics, ease of programming, and favorable performance-to-cost ratio make them the preferred solution for 2D process automation in a wide range of industries.
When evaluated through the lens of precision, throughput, and integration simplicity, SCARA stands out as one of the most robust choices for planar robotic applications. For manufacturers aiming to reduce cycle time, minimize footprint, and improve consistency without overengineering, SCARA remains a strategically sound investment.
