ABB IRB 4600 20/2.50

Industrial Robot ABB IRB 4600 20/2.50
Specifications
Type
Industrial Robot
Brand
ABB
Model
IRB 4600 20/2.50
Axes
6
Payload
20 kg
Reach
2500 mm
Repeatability
0.050 mm
Weight
412 kg
Maximum speed
360 °/s (axis-6)
Speed at rated payload
65 m/s²
IP rating
Standard IP67 (with Foundry-Plus protection)
Operating temperature
During operation +5 to +45 °C; storage/transportation −25 to +55 °C; short periods up to +70 °C
Mounting orientation
Floor mounted, suspended, tilted (0-15°), or inverted
Controller
IRC5 (single cabinet or dual cabinet)
Power supply
200-600 V, 3 phase, 50/60 Hz
Power consumption
1500 W
Tool flange
Tool flange at axis 6; ISO 9409-1 based tool mounting interface
Certifications
EN ISO 10218-1; ANSI/RIA R15.06; ANSI/UL 1740; CAN/CSA Z434
Cleanroom class
ISO 14644-1 Class 5 (only 40 kg and 60 kg variants)
Safety functions
Emergency stop; protective stop; safety interlocks; built-in safety signals; electronic position switches; double-circuit control of safety functions
Communication interfaces
Parallel I/O; CS + CP; Ethernet; PROFINET; Ethernet/IP; DeviceNet; PROFIBUS; (options include air communication)

The ABB IRB 4600 20/2.50 is a versatile industrial robot designed for high-performance automation tasks. Featuring six axes, a payload capacity of 20 kg, and a reach of 2500 mm, this model achieves a remarkable repeatability of 0.050 mm, making it ideal for precision applications. With a maximum speed of 360 °/s and the ability to operate in various mounting orientations, this robot is suitable for a wide range of industrial environments, while its robust IP67 rating ensures reliable performance even in demanding conditions.

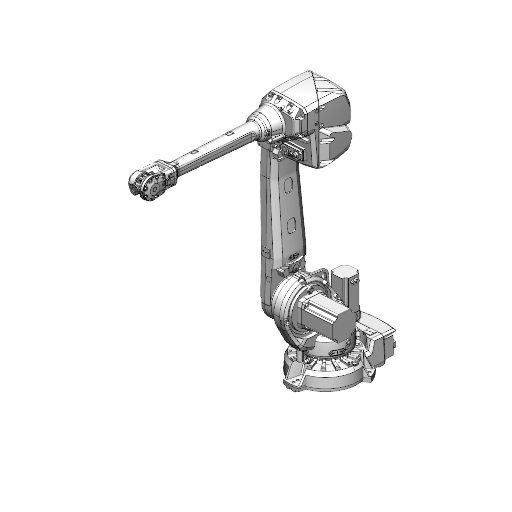

3D View

What are the technology applications of IRB 4600 20/2.50?

ABB IRB 4600 20/2.50 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of ABB IRB 4600 20/2.50: Deburring, Machine Tending, Pick and place, Polishing, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.
