ABB IRB 52/1.2

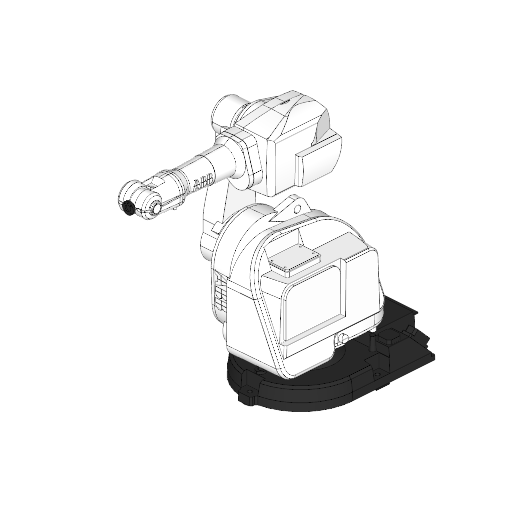

Industrial Robot ABB IRB 52/1.2

Specifications

Type

Industrial Robot

Brand

ABB

Model

IRB 52/1.2

Axes

6

Payload

7 kg

Reach

475 mm

Repeatability

0.15 mm

Weight

180 kg

IP rating

IP67 (wrist section IP54)

Operating temperature range

5 to 45 °C

Mounting orientation

Floor, inverted, wall, tilted

Controller

IRC5P Paint

Power supply

200 V / Hz

Power consumption

800 W

Tool flange

Ø 25 mm, Ø 50 mm, 4×M6

Certifications

Exi/Exp for installation in hazardous area Zone 1 (Europe) and Division I, Class I & II; electromagnetic emissions / EMC

Safety functions

Emergency stop buttons; stopping test mode; general and auto mode stop; activation device; cabin ventilation safety

Communication interfaces

CAN, Ethernet, NFS/FTP, FactoryWare Interface

Download ABB IRB 52/1.2 digital twin

The ABB IRB 52/1.2 is a highly versatile industrial robot designed for a range of automation tasks, featuring 6 axes and a payload capacity of 7 kg. With a reach of 475 mm and exceptional repeatability of 0.15 mm, this robust robot offers maximum speeds of 460 °/s while maintaining an IP67 rating for reliability in various environments. Ideal for applications in hazardous areas, it operates effectively within a temperature range of 5 to 45 °C and supports multiple mounting orientations, ensuring flexibility for diverse industrial needs.

What are the technology applications of IRB 52/1.2?

ABB IRB 52/1.2 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of ABB IRB 52/1.2:Deburring, Grinding, Multiaxis cutting, Robot milling, Trimming. But we recommend to consult with your robot supplied or the manufacturer.
