ABB IRB 52/1.45

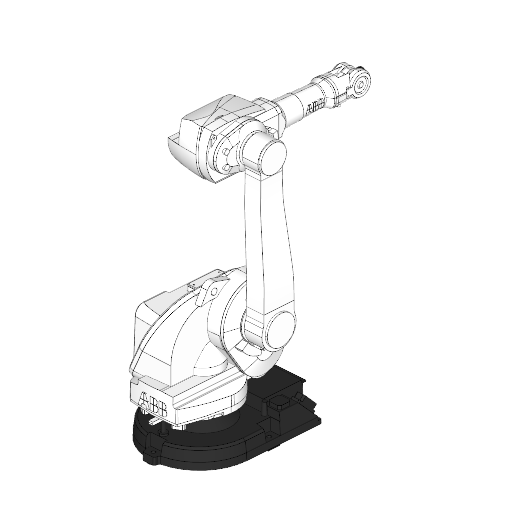

Industrial Robot ABB IRB 52/1.45

Specifications

Type

Industrial Robot

Brand

ABB

Model

IRB 52/1.45

Axes

6

Payload

7 kg

Reach

1450 mm

Repeatability

0.15 mm

Weight

250 kg

IP rating

IP66 (wrist IP54)

Mounting orientation

Floor, inverted, wall, tilted

Controller

IRC5P Paint

Power consumption

800 VA

Certifications

CE, Ex-certification for hazardous area Zone 1 / Division I, Class I & II

Safety functions

Explosion protected Exi / Exp for hazardous area, Zone 1 (Europe) and Division I, Class I & II

Communication interfaces

Digital inputs/outputs, Analog inputs/outputs, Fieldbus support including Interbus-S, ProfiBus, CC-Link

Download ABB IRB 52/1.45 digital twin

Start for free
The Industrial Robot ABB IRB 52/1.45 is a versatile six-axis robotic solution designed for demanding automation tasks, featuring a payload capacity of 7 kg and a reach of 1450 mm. With a high repeatability of 0.15 mm and a maximum speed of 460 °/s on the sixth axis, this robot excels in precision applications. Its robust design includes an IP66 rating for environmental protection and a wide range of mounting orientations, making it suitable for hazardous areas with Exi / Exp safety functions and various communication interfaces for seamless integration.
3D View

What are the technology applications of IRB 52/1.45?

ABB IRB 52/1.45 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of ABB IRB 52/1.45:Deburring, Grinding, Multiaxis cutting, Polishing, Trimming. But we recommend to consult with your robot supplied or the manufacturer.
