Industrial Robot ABB IRB 6600 175/2.8 Specs and Applications

Specifications

Type

Industrial Robot

Brand

ABB

Model

IRB 6600 175/2.8

Axes

Payload

175 kg

Reach

2800 mm

Repeatability

0.100 mm

Weight

1780 kg

Maximum speed

3.2 m/s

Speed at rated payload

1.6 m/s

IP rating

IP67

Operating temperature

+5 to +52 °C during operation; –25 to +55 °C storage; short-term up to +70 °C

Mounting orientation

Floor mounted

Controller

S4C+ / M2000 (BaseWare OS 4.0)

Power supply

200-600 V, 50/60 Hz

Power consumption

3800 W

Tool flange

ISO-9409-1-100 H7-11× M12 (11 holes), Depth 15 mm

Certifications

EN 292-1, EN 292-2, EN 954-1, EN 60204, IEC 204-1, ISO 10218

Safety functions

Double circuits with supervision, emergency stops, brakes; 3-position enabling device; stopping along programmed path; supervision of drive system and mechanical brakes

Communication interfaces

2 Ethernet channels; serial channels (RS232, RS422); fieldbus options including Profibus, CAN/DeviceNet, Interbus; parallel I/O; customer signals and power connections

The Industrial Robot ABB IRB 6600 175/2.8 is designed for high-performance automation in various industrial applications, featuring 6 axes with a substantial payload capacity of 175 kg and a generous reach of 2800 mm. This robust robot ensures precise operation with an impressive repeatability of 0.100 mm and operates efficiently at maximum speeds of 3.2 m/s, or 1.6 m/s at rated payload. Engineered for durability and safety, the robot is floor-mounted, IP67 rated, and capable of operating in temperatures ranging from +5 to +52 °C, making it a reliable choice for demanding environments.

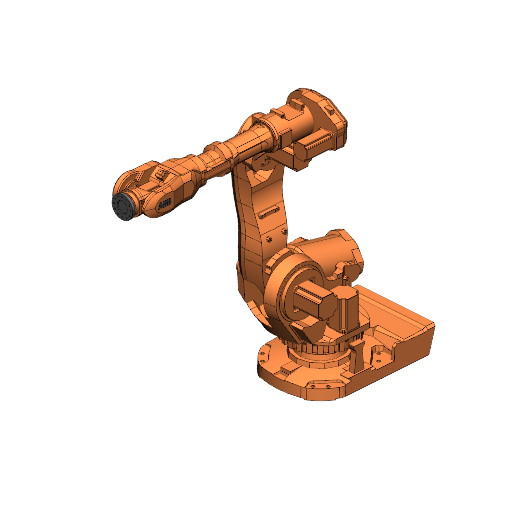

3D View

What are the technology applications of IRB 6600 175/2.8?

ABB IRB 6600 175/2.8 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of ABB IRB 6600 175/2.8: Machine Tending, Multiaxis cutting, Pick and place, Robot milling, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

ABB IRB 6600 175/2.8 applications programmed with ENCY Robot

Multiaxis cutting

Pick and place

Robot milling

Robot welding

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase ABB IRB 6600 175/2.8 or request a quote, please contact the manufacturer or an authorized local supplier.
