ABB IRB 6620 150/2.2

Industrial Robot ABB IRB 6620 150/2.2
Specifications
Type
Industrial Robot
Brand
ABB
Model
IRB 6620 150/2.2
Axes
6
Payload
150 kg
Reach
2200 mm
Repeatability
0.030 mm
Weight
880 kg
Maximum speed
150 °/s
IP rating
Standard IP54; upper arm and wrist unit IP67 with Foundry Plus option
Operating temperature
Manipulator: +5 °C to +50 °C
Mounting orientation
Floor, Tilted, Inverted; tilting ± 15° allowed for both mountings
Controller
IRC5 with FlexPendant
Power supply
200-600 V AC, 50/60 Hz
Tool flange
ISO 9409-1:2004, hole diameter Ø100 H7, bolt holes M12 (thread depth min 9mm), insulated tool flange also available
Certifications
Designed according to EN ISO 10218-1:2006; CE marking
Safety functions
Reduced speed 250 mm/s when safety mode; enabling device push button; safety instructions per EN ISO 10218-1:2006
Communication interfaces
Standard field buses I/O; sensor interfaces; remote disk access; socket messaging in IRC5 controller

The Industrial Robot ABB IRB 6620 150/2.2 is a highly efficient six-axis robotic solution designed for demanding automation tasks. With a payload capacity of 150 kg and a maximum reach of 2200 mm, this robot offers exceptional precision with a repeatability of just 0.030 mm. Equipped with the advanced IRC5 controller and a variety of communication interfaces, it operates within a temperature range of +5 °C to +50 °C and is suitable for various mounting orientations, making it an ideal choice for diverse industrial applications.

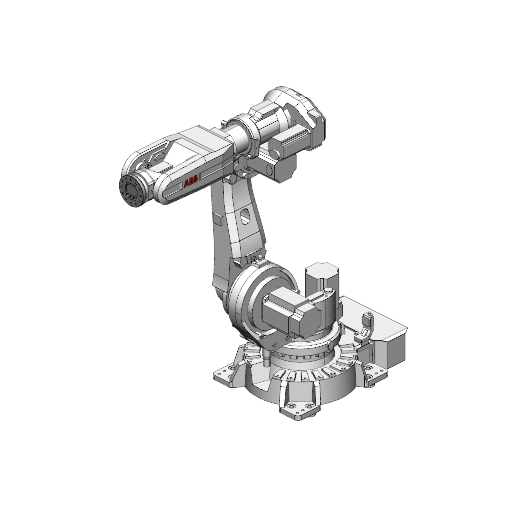

3D View

What are the technology applications of IRB 6620 150/2.2?

ABB IRB 6620 150/2.2 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of ABB IRB 6620 150/2.2: Deburring, Machine Tending, Pick and place, Robot milling, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.
