ABB IRB 8700-550/4.20 SW6

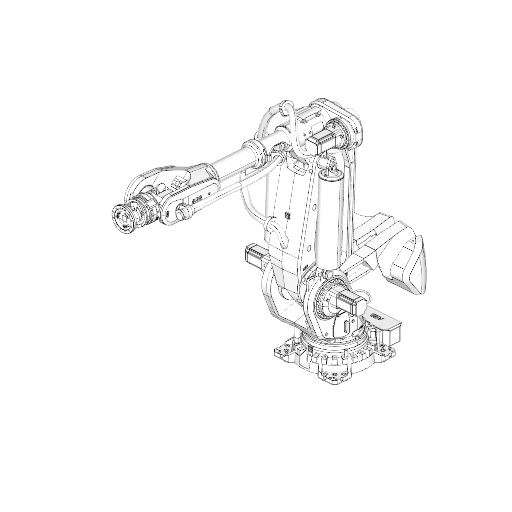

Industrial Robot ABB IRB 8700-550/4.20 SW6

Specifications

Type

Heavy-Duty Industrial Robot

Brand

ABB

Model

IRB 8700-550/4.20 SW6

Axes

7

Payload

550 kg

Reach

4200 mm

Repeatability

0.08 mm

Weight

4575 kg

IP rating

IP67

Operating temperature range

During operation +5 °C to +50 °C

Mounting orientation

Floor mounted (inclined ±15° option around Y-axis)

Controller

IRC5

Power supply

200-600 V, 50/60 Hz

Power consumption

3930 W

Certifications

CE

Safety functions

Double circuits with supervision, emergency stops, 3-position enable device; Extended safety: SafeMove2

Download ABB IRB 8700-550/4.20 SW6 digital twin

The ABB IRB 8700-550/4.20 SW6 is a high-performance industrial robot featuring seven axes and a payload capacity of 550 kg, making it ideal for heavy-duty applications. With a reach of 4200 mm and exceptional repeatability of 0.08 mm, this robot operates effectively within an ambient temperature range of +5 °C to +50 °C. Designed for floor mounting with an inclined ±15° option around the Y-axis, it is controlled by the sophisticated IRC5 controller and meets rigorous safety standards with features like SafeMove2 and dual circuits for enhanced safety.

What are the technology applications of IRB 8700-550/4.20 SW6?

ABB IRB 8700-550/4.20 SW6 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of ABB IRB 8700-550/4.20 SW6:Deburring, Machine Tending, Multiaxis cutting, Robot milling, Robot welding. But we recommend to consult with your robot supplied or the manufacturer.
