ABB IRB 8700-800/3.50 MH3

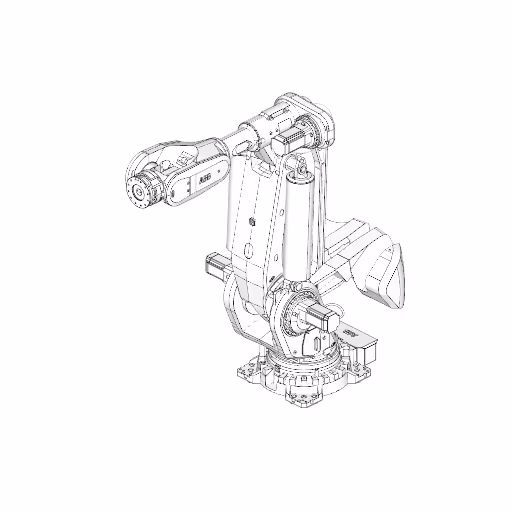

Industrial Robot ABB IRB 8700-800/3.50 MH3

Specifications

Type

Heavy-Duty Industrial Robot

Brand

ABB

Model

IRB 8700-800/3.50 MH3

Axes

7

Payload

800 kg

Reach

3500 mm

Repeatability

0.05 mm

Weight

4525 kg

Speed at rated payload

115 °/s

IP rating

IP67 (Foundry Plus 2)

Operating temperature range

+5 to +50 °C

Mounting orientation

Floor mounted

Controller

IRC5 (single cabinet)

Power supply

200-600 V, 50/60 Hz

Power consumption

3.93 kW

Certifications

CE

Safety functions

Double circuits with supervision, emergency stops, 3-position enable device, extended safety SafeMove2

Download ABB IRB 8700-800/3.50 MH3 digital twin

Start for free
The ABB IRB 8700-800/3.50 MH3 is a versatile industrial robot designed for high-demand applications, featuring seven axes for precise movement and an impressive payload capacity of 800 kg. With a reach of 3500 mm and a repeatability of 0.05 mm, this robot operates efficiently at a maximum speed of 115 °/s, making it ideal for a variety of manufacturing processes. Built with an IP67 (Foundry Plus 2) rating, it is suitable for challenging environments and can be securely mounted on the floor for optimal performance.
3D View

What are the technology applications of IRB 8700-800/3.50 MH3?

ABB IRB 8700-800/3.50 MH3 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of ABB IRB 8700-800/3.50 MH3:Deburring, Grinding, Machine Tending, Multiaxis cutting, Robot milling. But we recommend to consult with your robot supplied or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

A sleek interface displays a robotic arm shaping a surfboard model.

ABB IRB 8700-800/3.50 MH3 applications programmed with ENCY Robot

A robotic arm is preparing to cut a green-topped object.

Multiaxis cutting

A robotic arm is milling the surface of a boat hull.

Robot Milling

Frequently asked questions

Can ABB IRB 8700-800/3.50 MH3 be programmed with ENCY Robot?

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase ABB IRB 8700-800/3.50 MH3 or request a quote, please contact the manufacturer or an authorized local supplier.
