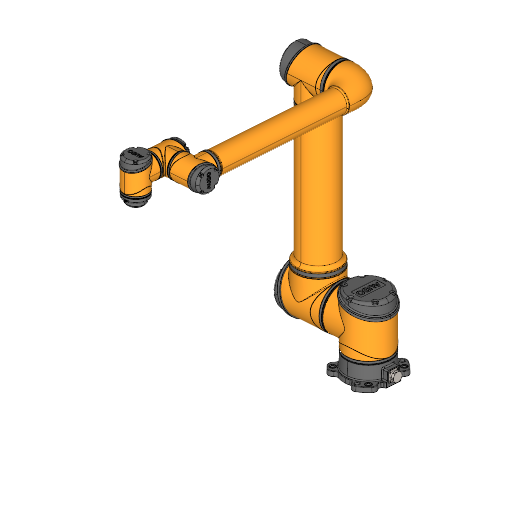

Cobot AUBO i20 Specs and Applications

Specifications

Type

Cobot

Brand

AUBO

Model

i20

Axes

Payload

20 kg

Reach

1650 mm

Repeatability

0.1 mm

Weight

63 kg

Maximum speed

2.6 m/s

Speed at rated payload

2.6 m/s

IP rating

IP54

Mounting orientation

Any (Floor, Wall, Invert)

Controller

AUBO-CB-M

Power supply

100-240 VAC, 50/60 Hz

Power consumption

1000 W

Certifications

EN ISO 13849-1:2015 (PL=d, CAT 3); ISO/TS 15066:2016; UL; CE; SEMI S2; ISO 14644-1 Class 5

Cleanroom class

ISO Class 5

Safety functions

Safety-monitored stop; Speed and separation monitoring; Manual guidance; Force and torque limitation; Protective stop on collision

Communication interfaces

Ethernet TCP/IP; Modbus-RTU; Modbus-TCP; Profinet; [unknown: other interfaces]

The Cobot AUBO i20 is a highly versatile 6-axis robotic arm designed for industrial automation applications. With an impressive payload capacity of 20 kg and a reach of 1650 mm, it offers exceptional performance with a repeatability of 0.1 mm and maximum speed of 2.6 m/s. This robust 63 kg unit is built to operate in various mounting orientations and is compliant with strict safety standards, making it suitable for cleanroom environments classified as ISO Class 5.

3D View

What are the technology applications of i20?

AUBO i20 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of AUBO i20: Assembly, Deburring, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

AUBO i20 applications programmed with ENCY Robot

Pick and place

Polishing

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase AUBO i20 or request a quote, please contact the manufacturer or an authorized local supplier.

Other Cobot by AUBO
