Cobot AUCTECH X20-1400 Specs and Applications

Specifications

Type

Cobot

Brand

AUCTECH

Model

X20-1400

Axes

Payload

20 kg

Reach

1400 mm

Repeatability

0.05 mm

Weight

66 kg

Maximum speed

2.2 m/s

Speed at rated payload

1 m/s

IP rating

IP54 / IP65

Operating temperature

-10 to 45 °C

Mounting orientation

Installed in any Direction

Controller

AUCTECH proprietary X Series controller

Power supply

220-240 VAC, 47-63 Hz, 10 A / 100-200 VAC, 47-63 Hz, 16 A

Power consumption

600 W

Tool flange

GB/T 14468.1-50-4-M6 (equivalent ISO 9409-1)

Certifications

Safety functions

16 TUV certified safety functions including collision detection, force and power monitoring

Communication interfaces

DI, DO, AI/O external interfaces; (presumably standard fieldbus/industrial network options)

The Cobot AUCTECH X20-1400 is a versatile 6-axis robot designed for industrial automation applications, offering a payload capacity of 20 kg and a reach of 1400 mm. With a remarkable repeatability of 0.05 mm and a maximum speed of 2.2 m/s, this cobot efficiently handles various tasks while ensuring safety through 16 TUV certified functions. The AUCTECH X20-1400 operates in a temperature range of -10 to 45 °C and features an IP54/IP65 rating, making it suitable for diverse environments and mounting orientations.

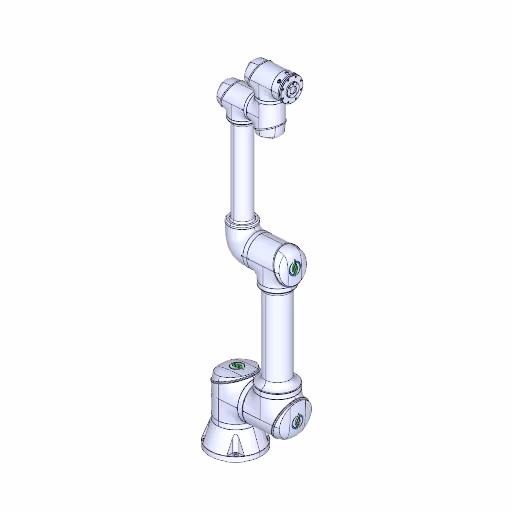

3D View

What are the technology applications of X20-1400?

AUCTECH X20-1400 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of AUCTECH X20-1400: Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.
