Industrial Robot COMAU Smart5-NJ-110-3-0 Specs and Applications

Heavy-Duty Industrial Robot COMAU Smart5-NJ-110-3-0

Specifications

Type

Industrial Robot

Brand

Comau

Model

Smart5-NJ-110-3-0

Axes

Payload

110 kg

Reach

2980 mm

Repeatability

0.070 mm

Weight

1070 kg

Maximum speed

230 deg/s

IP rating

IP65 / IP67

Operating temperature

5 to 45 °C

Mounting orientation

Floor / Ceiling

Controller

C5G

Tool flange

ISO 9409-1-A-125

Certifications

ISO 9001:2015, ISO 14001:2015, ISO 50001

The COMAU Smart5-NJ-110-3-0 is a heavy-duty industrial robot designed for robust applications, featuring seven axes and an impressive payload capacity of 110 kg. With a reach of 2980 mm and exceptional repeatability of 0.070 mm, this robot operates efficiently at a maximum speed of 230 deg/s within an operating temperature range of 5 to 45 °C. Built to endure demanding environments, it boasts an IP65/IP67 rating and is suitable for both floor and ceiling mounting, making it an ideal choice for various industrial automation tasks.

3D View

What are the technology applications of Smart5-NJ-110-3-0?

COMAU Smart5-NJ-110-3-0 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of COMAU Smart5-NJ-110-3-0: Machine Tending, Multiaxis cutting, Pick and place, Robot milling, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

COMAU Smart5-NJ-110-3-0 applications programmed with ENCY Robot

Multiaxis cutting

Pick and place

Robot milling

Robot welding

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase COMAU Smart5-NJ-110-3-0 or request a quote, please contact the manufacturer or an authorized local supplier.

Other Industrial Robot by Comau

Details

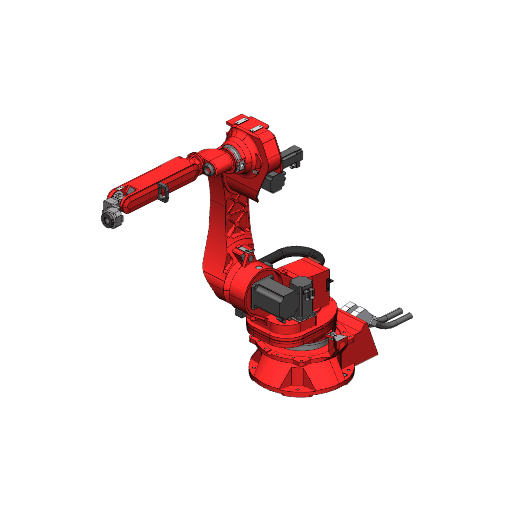

COMAU Arc4-5-1.95

Details

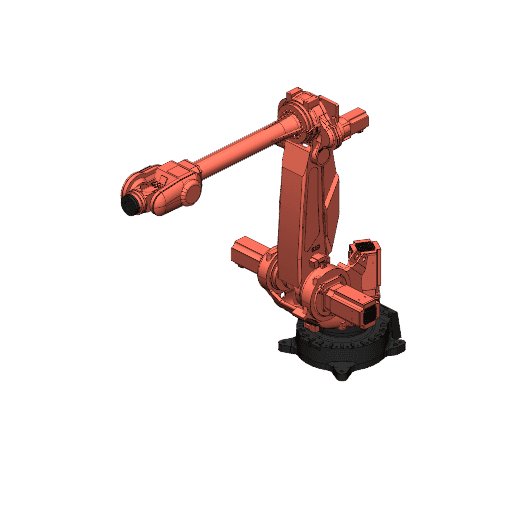

COMAU NJ-100-3.2 PRESS
