Cobot DOBOT CR10A Specs and Applications

Specifications

Type

Cobot

Brand

Dobot

Model

CR10A

Axes

Payload

10 kg

Reach

1300 mm

Repeatability

0.03 mm

Weight

40 kg

Maximum speed

2 m/s

Speed at rated payload

2 m/s

IP rating

IP54

Mounting orientation

Any angle

Controller

Standalone safety controller, PLd Category 3

Power supply

100-240 VAC, 47-63 Hz

Power consumption

350 W

Tool flange

Standard DOBOT CRA-series tool flange with aviation plug and Φ6 positioning holes

Certifications

CE, ISO 13849-1, ISO 10218-1, ISO/TS 15066, SGS NA Listed Mark

Safety functions

20+ built-in safety functions; ISO 13849, ISO/TS 15066 certified; Optional SafeSkin pre-collision detection

Communication interfaces

TCP/IP, Modbus TCP, EtherNet/IP, PROFINET, EtherCAT, Wi-Fi, RS485

The Cobot DOBOT CR10A is a versatile 6-axis collaborative robot designed for a maximum payload of 10 kg and an impressive reach of 1300 mm. With a repeatability of 0.03 mm and a maximum speed of 2 m/s, this robust cobot is suitable for a variety of industrial automation applications. Featuring over 20 built-in safety functions and compliant with multiple ISO certifications, the DOBOT CR10A ensures a reliable and safe operation in any mounting orientation.

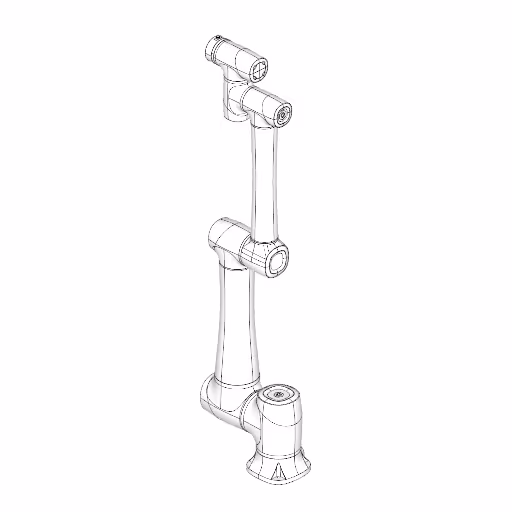

3D View

What are the technology applications of CR10A?

DOBOT CR10A is a versatile robot suitable for a wide range of industrial applications.

Primary applications of DOBOT CR10A: Assembly, Deburring, Dispensing, Machine Tending, Pick and place. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

DOBOT CR10A applications programmed with ENCY Robot

Pick and place

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase DOBOT CR10A or request a quote, please contact the manufacturer or an authorized local supplier.

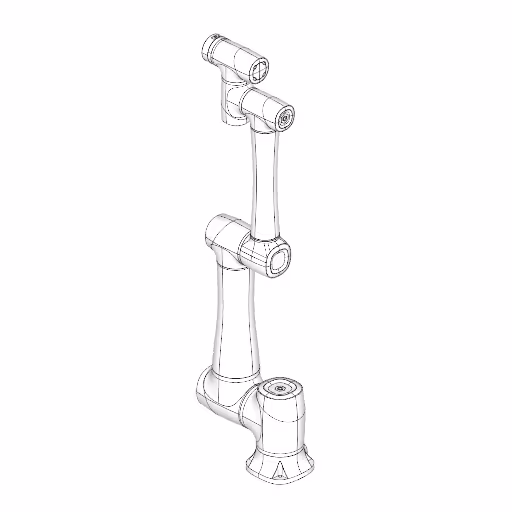

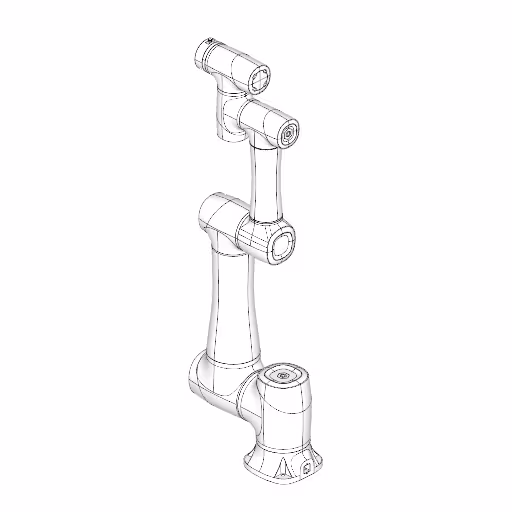

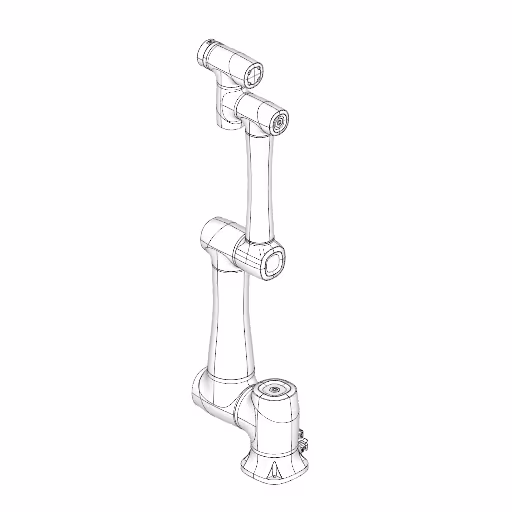

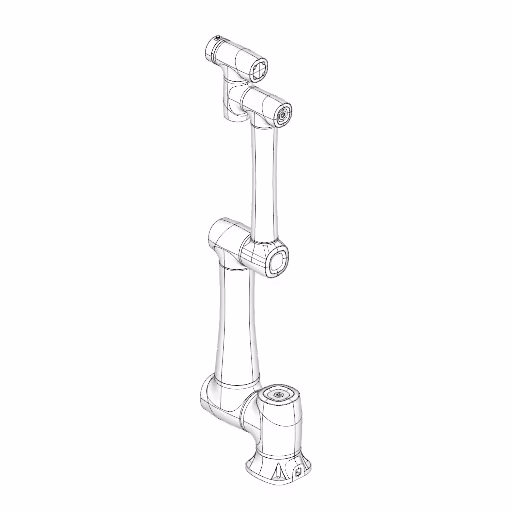

Other Cobot by Dobot
