Cobot DOBOT CR3A Specs and Applications

Specifications

Type

Cobot

Brand

Dobot

Model

CR3A

Axes

Payload

3 kg

Reach

620 mm

Repeatability

0.02 mm

Weight

16.5 kg

Maximum speed

2 m/s

Speed at rated payload

2 m/s

IP rating

IP54

Mounting orientation

Any angle

Controller

CC262 Control Unit

Power supply

100-240 V AC, 50/60 Hz

Power consumption

120 W

Tool flange

ISO 9409-1 standard flange

Certifications

SGS NA Listed Mark, CE, ISO 13849-1, ISO 10218-1, ISO/TS 15066, 2006/42/EC Machinery Directive, MIC (Japan), KCs (South Korea)

Safety functions

PLd Cat.3 rated safety controller with 20+ safety functions, optional SafeSkin pre-collision detection

Communication interfaces

Ethernet (TCP/IP, Modbus TCP), Profinet, Ethernet/IP, WiFi, RS485

The Cobot DOBOT CR3A is a versatile 6-axis industrial automation component designed for precise applications with a payload capacity of 3 kg and a reach of 620 mm. This compact robot weighs 16.5 kg and offers a repeatability of 0.02 mm, making it ideal for tasks requiring high accuracy. With an IP54 rating and multiple communication interfaces, including Ethernet, Profinet, and WiFi, the CR3A is suitable for various mounting orientations and complies with multiple international safety and certification standards.

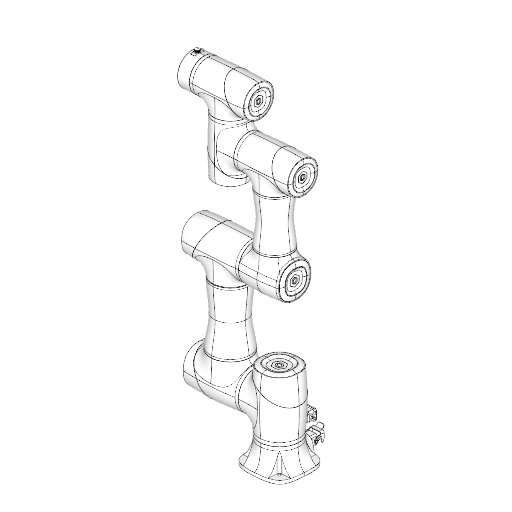

3D View

What are the technology applications of CR3A?

DOBOT CR3A is a versatile robot suitable for a wide range of industrial applications.

Primary applications of DOBOT CR3A: Assembly, Dispensing, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

DOBOT CR3A applications programmed with ENCY Robot

Pick and place

Polishing

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase DOBOT CR3A or request a quote, please contact the manufacturer or an authorized local supplier.
