Cobot DOBOT CR7 Specs and Applications

Specifications

Type

Cobot

Brand

Dobot

Model

CR7

Axes

Payload

7 kg

Reach

990 mm

Repeatability

0.02 mm

Weight

24.5 kg

Maximum speed

3000 mm/s

Speed at rated payload

3000 mm/s

IP rating

IP54 (robotic arm), Control Box IP20 (IP66 available upon choice)

Mounting orientation

Any angle

Power supply

DC 48V

Power consumption

150 W

Certifications

CE, ISO 10218-1, ISO 15066, ISO 13849 PLd, NRTL, UL, FCC, Chinese CR, KC (Korea), RCM (Australia/New Zealand), SGS NA Listed Mark

Safety functions

22 safety features built-in; ISO 13849-1 PLd certified; TS 15066 certified; optional SafeSkin for pre-collision detection and 5 levels of adjustable collision detection strength

Communication interfaces

TCP/IP, Modbus (including Modbus TCP), RS-485, Wi-Fi

The Cobot DOBOT CR7 is a versatile 6-axis robotic arm designed for efficient industrial automation tasks. With a payload capacity of 7 kg and a reach of 990 mm, this lightweight robotic arm, weighing only 24.5 kg, delivers exceptional repeatability of 0.02 mm and a maximum speed of 3000 mm/s. Featuring advanced safety functions and multiple communication interfaces, the DOBOT CR7 is ideal for diverse applications while meeting stringent certifications such as CE and ISO 13849-1 PLd.

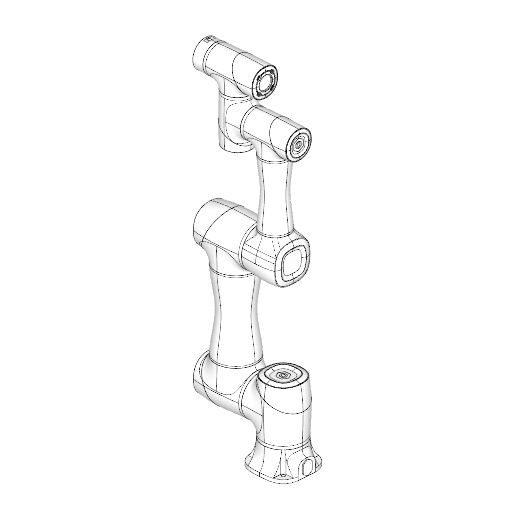

3D View

What are the technology applications of CR7?

DOBOT CR7 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of DOBOT CR7: Assembly, Deburring, Dispensing, Machine Tending, Pick and place. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

DOBOT CR7 applications programmed with ENCY Robot

Pick and place

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase DOBOT CR7 or request a quote, please contact the manufacturer or an authorized local supplier.
