Cobot DOOSAN H2515 Specs and Applications

Specifications

Type

Cobot

Brand

Doosan

Model

H2515

Axes

Payload

25 kg

Reach

1500 mm

Repeatability

0.100 mm

Weight

72 kg

Maximum speed

1 m/s

Speed at rated payload

1 m/s

IP rating

IP54

Mounting orientation

Only Floor

Controller

Latest H-Series Controller (options: standard controller, DC Controller CS-02, Controller Steel IP54)

Power supply

DC 24V, Max. 3A

Tool flange

Tool Flange & Connector: Digital I/O-X1 IN-3ch / OUT-3ch; Digital I/O-X2 IN-3ch / OUT-3ch; Connector 1424229, female (PHOENIX)

Certifications

ISO 10218, ISO/TS 15066, CE, NRTL, Korea KC; Functional Safety certification

Safety functions

STO, SS1, SS2, SOS; Safety-Rated Stop, Joint Position Monitoring, Joint Speed Monitoring, TCP Position/Direction Monitoring; Meets Category 3, Performance Level d (PL d), SIL 2

Communication interfaces

Digital I/O, Analog I/O; Control-box: RS-232, USB 3.0, TCP/IP; Fieldbus support including Modbus-TCP, Modbus-RTU, EtherNet/IP, PROFINET IO

The Cobot DOOSAN H2515 is a versatile 6-axis industrial robot designed to streamline automation processes with a payload capacity of 25 kg and a reach of 1500 mm. It boasts impressive repeatability of 0.100 mm and a maximum speed of 1 m/s, making it ideal for precision tasks. With an IP54 rating and a range of safety functions, this robust cobot is suitable for various applications while ensuring compliance with international safety and performance standards.

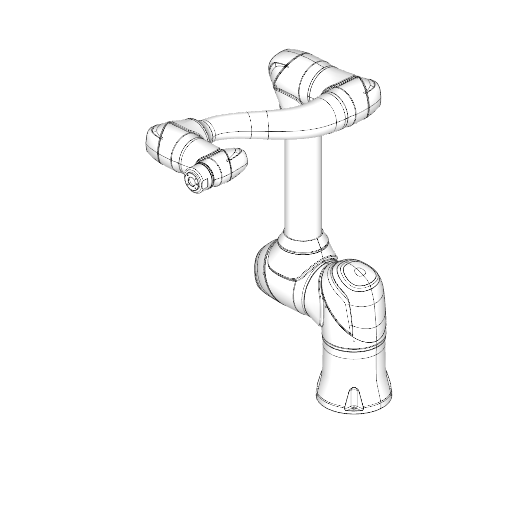

3D View

What are the technology applications of H2515?

DOOSAN H2515 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of DOOSAN H2515: Deburring, Machine Tending, Pick and place, Polishing, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.
