Industrial Robot EPSON C8-A901S Specs and Applications

Specifications

Type

Industrial Robot

Brand

Epson

Model

C8-A901S

Axes

Payload

8 kg

Reach

901 mm

Repeatability

0.03 mm

Weight

52 kg

Maximum speed

450 deg/s

Speed at rated payload

0.5 s

IP rating

IP40 standard / IP67 protected optional

Operating temperature

5 to 40 °C

Mounting orientation

Tabletop, Ceiling, Wall

Controller

RC700-A

Power supply

AC 200-240V, Single Phase, 50/60Hz

Power consumption

2.5 kVA

Tool flange

Standard wrist tool flange surface (981 mm reach to wrist flange)

Certifications

CE, KC, UL / UL 1740

Cleanroom class

ISO-3 (for C8/C8L models)

Safety functions

Emergency stop; Safeguard circuit; Speed/position monitoring per ISO 13849; Low power mode; Dynamic brake; Motor overload, driver and encoder detection; Voltage/fan/temperature error detection

Communication interfaces

Ethernet TCP/IP, RJ-45, RS-232C, Fieldbus options: Profibus-DP, DeviceNet, CC-Link, EtherNet/IP, PROFINET, EtherCAT

The EPSON C8-A901S is a powerful 6-axis industrial robot designed for optimal precision in automation processes. With a payload capacity of 8 kg and a reach of 901 mm, this robot delivers a remarkable repeatability of 0.03 mm, making it ideal for demanding applications. It operates efficiently within a temperature range of 5 to 40 °C and features versatile mounting options, ensuring adaptability across various industrial environments.

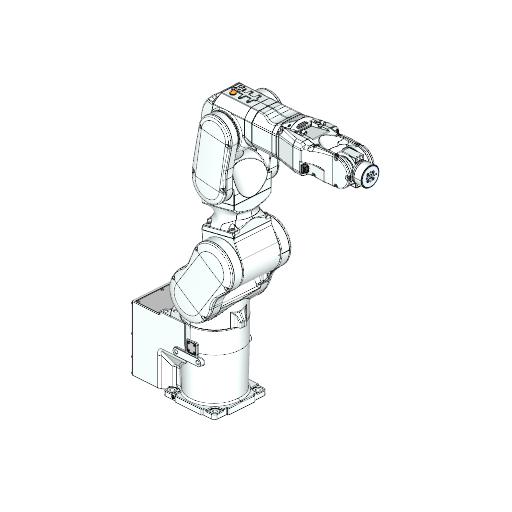

3D View

What are the technology applications of C8-A901S?

EPSON C8-A901S is a versatile robot suitable for a wide range of industrial applications.

Primary applications of EPSON C8-A901S: Assembly, Dispensing, Machine Tending, Pick and place, Trimming. But we recommend to consult with your robot supplier or the manufacturer.
