Industrial Robot ESTUN ER100B-3500-DW Specs and Applications

Specifications

Type

Industrial Robot

Brand

ESTUN

Model

ER100B-3500-DW

Axes

Payload

100 kg

Reach

3500 mm

Repeatability

0.06 mm

Weight

1050 kg

Maximum speed

885 deg/s

Speed at rated payload

200 deg/s

IP rating

Body IP54, Wrist IP65

Mounting orientation

Rack mounted

Controller

ERC3-S2

Power supply

Three-phase AC 380-440V, 50/60Hz

Power consumption

7 kW

Tool flange

ø160h6 area, 6-M10 through holes, 1 Φ10 positioning pin

Certifications

Safety functions

Mechanical stoppers on axes, supplied teach-pendant emergency stop, key switch; safety IO interface optional

Communication interfaces

EtherCAT, Modbus TCP, TCP/IP, EtherNet/IP (optional: Profinet, Profibus, CC-LINK)

The Industrial Robot ESTUN ER100B-3500-DW is a highly versatile 6-axis robotic solution designed for heavy-duty automation tasks, offering a payload capacity of 100 kg and an impressive reach of 3500 mm. With a repeatability of 0.06 mm and a maximum speed of 285 °/s, this robot is ideal for precise applications in demanding environments. It features robust IP ratings, a three-phase AC power supply, and a comprehensive set of communication interfaces, making it a reliable choice for industrial automation systems.

3D View

What are the technology applications of ER100B-3500-DW?

ESTUN ER100B-3500-DW is a versatile robot suitable for a wide range of industrial applications.

Primary applications of ESTUN ER100B-3500-DW: Assembly, Machine Tending, Pick and place, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

ESTUN ER100B-3500-DW applications programmed with ENCY Robot

Pick and place

Robot welding

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase ESTUN ER100B-3500-DW or request a quote, please contact the manufacturer or an authorized local supplier.

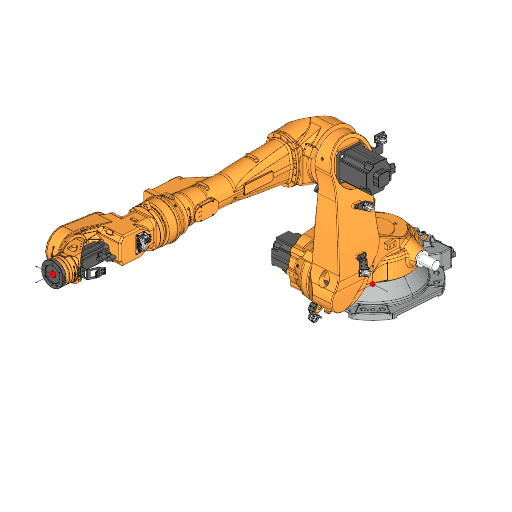

Other Industrial Robot by ESTUN
