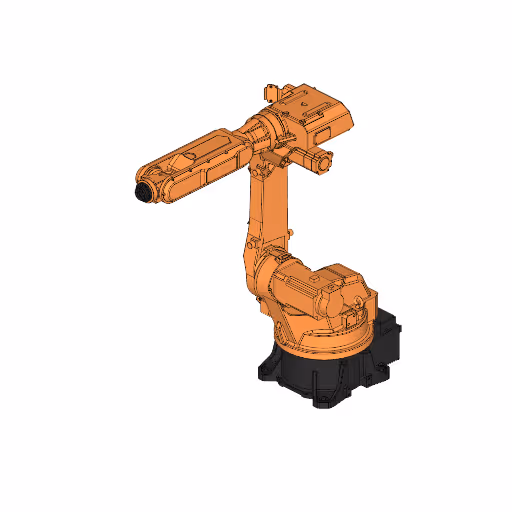

Industrial Robot EVS QJR6-1 Specs and Applications

Specifications

Type

Industrial Robot

Brand

EVS

Model

EVS QJR6-1

Axes

Payload

6 kg

Reach

1456 mm

Repeatability

0.080 mm

Weight

150 kg

Maximum speed

602 °/s

Speed at rated payload

602 °/s

Mounting orientation

Ground, Ceiling

Power supply

Three-phase four-wire

Power consumption

2700 VA

Certifications

CE, ISO 9001:2015

The Industrial Robot EVS QJR6-1 is a highly efficient six-axis robotic arm designed for versatile applications, featuring a payload capacity of 6 kg and a reach of 1456 mm. With a maximum speed of 602 °/s and exceptional repeatability of 0.080 mm, this robust unit weighs 150 kg and supports both ground and ceiling mounting orientations. Compliant with CE and ISO 9001:2015 standards, the EVS QJR6-1 operates on a three-phase four-wire power supply, with a power consumption of 2700 VA, making it an ideal solution for demanding industrial automation tasks.

3D View

What are the technology applications of EVS QJR6-1?

EVS QJR6-1 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of EVS QJR6-1: Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

EVS QJR6-1 applications programmed with ENCY Robot

Multiaxis cutting

Polishing

Robot milling

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase EVS QJR6-1 or request a quote, please contact the manufacturer or an authorized local supplier.
