Cobot FAIRINO FR10-V6.0 Specs and Applications

Specifications

Type

Cobot

Brand

FAIRINO

Model

FR10-V6.0

Axes

Payload

10 kg

Reach

1400 mm

Repeatability

0.05 mm

Weight

40 kg

Maximum speed

1.5 m/s

Speed at rated payload

1.5 m/s

IP rating

IP54 (optional IP65)

Mounting orientation

Any orientation

Controller

DC MINI Controller 2KW / AC MINI Controller 2KW

Power supply

30-60VDC; output power 48VDC / 42A max

Power consumption

300 W

Tool flange

4 × M6 thread holes, strength class ≥8.8, bolt torque 8 Nm

Certifications

ISO 9001; CE; CR; KCS; NRTL; RoHS 2.0; NSF; SEMI; ISO 10218; ISO 13849; ISO 15066

Safety functions

Full closed-loop joint torque feedback; emergency-stop and enabling switch on teach pendant

Communication interfaces

I/O, TCP/IP, Modbus-TCP/RTU (optional: CC-Link, Profinet, Ethernet/IP, EtherCAT)

The Cobot FAIRINO FR10-V6.0 is a highly versatile 6-axis collaborative robot designed for industrial automation applications. With a payload capacity of 10 kg and a reach of 1400 mm, it offers precise operation with a repeatability of 0.05 mm and a maximum speed of 1.5 m/s. Featuring optional IP65 rating, the cobot supports various mounting orientations and integrates seamlessly with multiple communication interfaces, making it a reliable choice for enhancing productivity in diverse manufacturing environments.

3D View

What are the technology applications of FR10-V6.0?

FAIRINO FR10-V6.0 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of FAIRINO FR10-V6.0: Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

FAIRINO FR10-V6.0 applications programmed with ENCY Robot

Multiaxis cutting

Polishing

Robot milling

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase FAIRINO FR10-V6.0 or request a quote, please contact the manufacturer or an authorized local supplier.

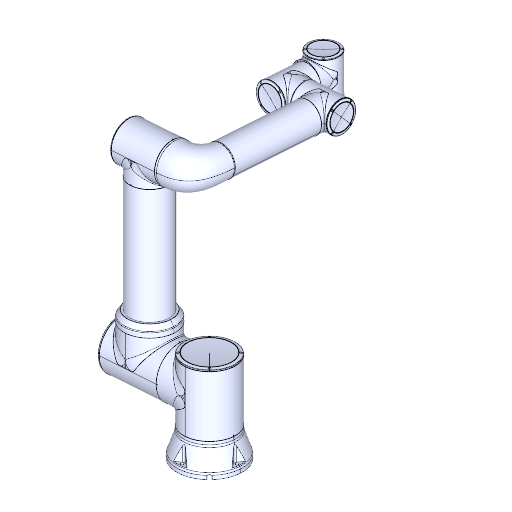

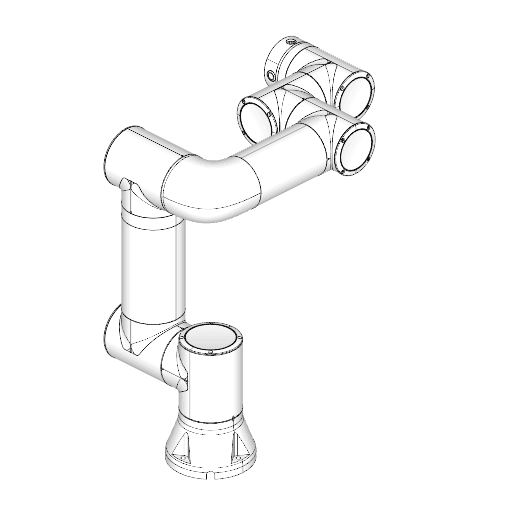

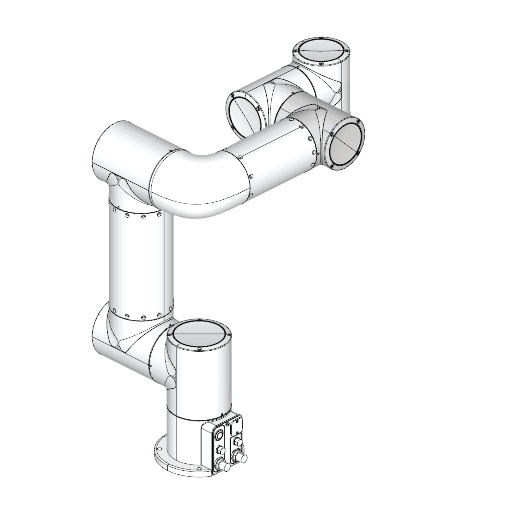

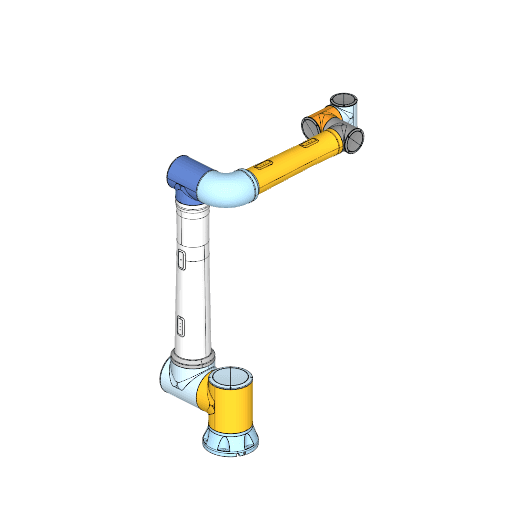

Other Cobot by FAIRINO
