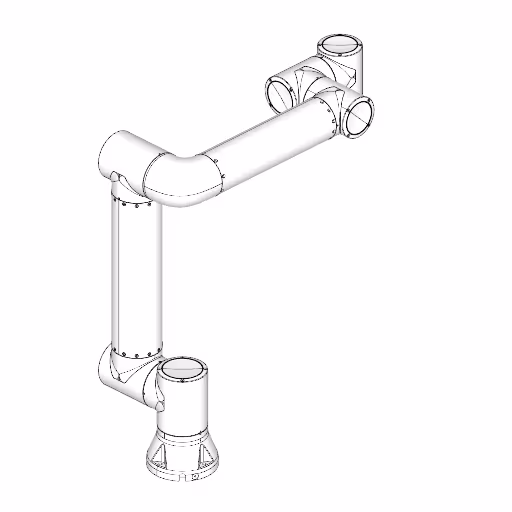

Cobot FAIRINO FR3-WML Specs and Applications

Specifications

Type

Cobot

Brand

FAIRINO

Model

FR3-WML

Axes

Payload

3 kg

Reach

622 mm

Repeatability

0.05 mm

Weight

11.3 kg

Maximum speed

1 m/s

Speed at rated payload

1 m/s

IP rating

IP54 (IP65 Optional)

Mounting orientation

Any orientation

Controller

DC MINI Controller 2kW or AC MINI Controller 2kW

Power supply

30-60 V DC

Power consumption

140 W

Tool flange

Four M6 thread holes, torque ≥8 Nm, strength level ≥8.8

Certifications

ISO 9001; CR, CE, KCS, NRTL; ROHS 2.0; NSF; SEMI; ISO 10218; ISO 13849; ISO 15066

Safety functions

Collision detection, emergency stop (Category 0 stop), protective stop, soft-limit stop

Communication interfaces

I/O, TCP/IP, Modbus TCP/RTU; optional: Profinet, Ethernet/IP, CC-Link, EtherCAT

The Cobot FAIRINO FR3-WML is a versatile 6-axis robotic arm designed for industrial automation with a payload capacity of 3 kg and a reach of 622 mm. Weighing 11.3 kg, it offers impressive repeatability of 0.05 mm and can operate at speeds up to 1 m/s, with options for various mounting orientations. Equipped with robust safety functions and multiple communication interfaces, this cobot is suitable for a range of applications and complies with several important industry certifications.

3D View

What are the technology applications of FR3-WML?

FAIRINO FR3-WML is a versatile robot suitable for a wide range of industrial applications.

Primary applications of FAIRINO FR3-WML: Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

FAIRINO FR3-WML applications programmed with ENCY Robot

Multiaxis cutting

Polishing

Robot milling

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase FAIRINO FR3-WML or request a quote, please contact the manufacturer or an authorized local supplier.

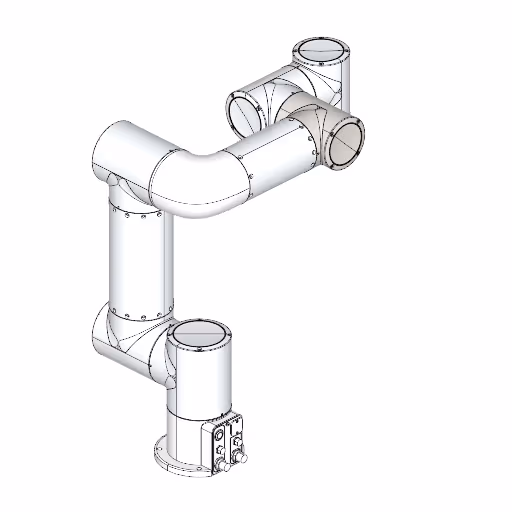

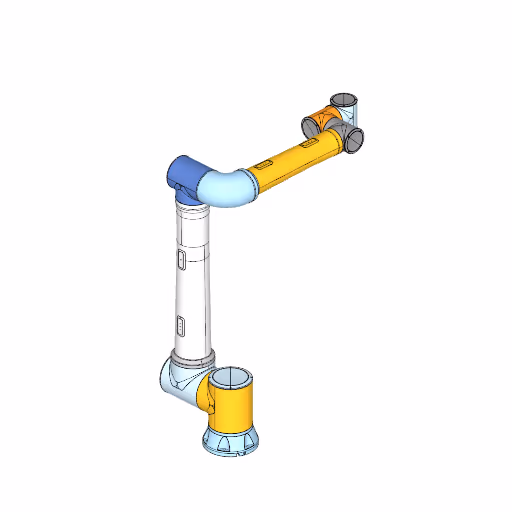

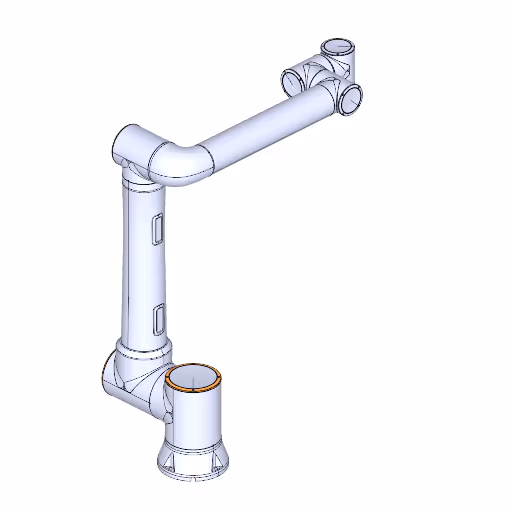

Other Cobot by FAIRINO
