Industrial Robot FANUC LR Mate 200iD Specs and Applications

Specifications

Type

Industrial Robot

Brand

Fanuc

Model

LR Mate 200iD

Axes

Payload

7 kg

Reach

717 mm

Repeatability

0.020 mm

Weight

25 kg

Maximum speed

11000 mm/s

Speed at rated payload

11000 mm/s

IP rating

IP67 (standard), IP69K (optional)

Mounting orientation

Floor, Inverted, Angle

Controller

R-30iB (open air / Mate / Mate Plus / Cabinets with iPendant Touch)

Power supply

AC 200‐230V, 50/60Hz, single phase (some variants support three phase)

Power consumption

0.5 kW

Tool flange

Standard “EE” end-effector connector (Robot-End Effector flange compatible with Fanuc LR Mate series EE-type; ISO tool-interface use via adapters)

Certifications

CE marking; ISO 10218-1 / RIA safety standards; UL listed where applicable

Cleanroom class

Class 10 clean room (ISO Class 4) for 7C option; clean room capable variants

Safety functions

Dual Check Safety (DCS) speed & position monitoring; collision detection; safety rated guarded speed zones (with SRS / certified functions optional)

Communication interfaces

Ethernet (standard), Digital I/O, optional EtherNet/IP / Profinet / DeviceNet / Profibus via modules

The FANUC LR Mate 200iD is a high-performance industrial robot featuring six axes and designed for versatile applications with a payload capacity of 7 kg and a reach of 717 mm. With a remarkable repeatability of 0.020 mm and a maximum speed of 11000 mm/s, this lightweight robot at 25 kg is ideal for precise automated tasks in environments requiring high reliability. It is equipped with an R-30iB controller and complies with IP67 standards, ensuring durability while providing robust communication options including Ethernet and various fieldbus protocols.

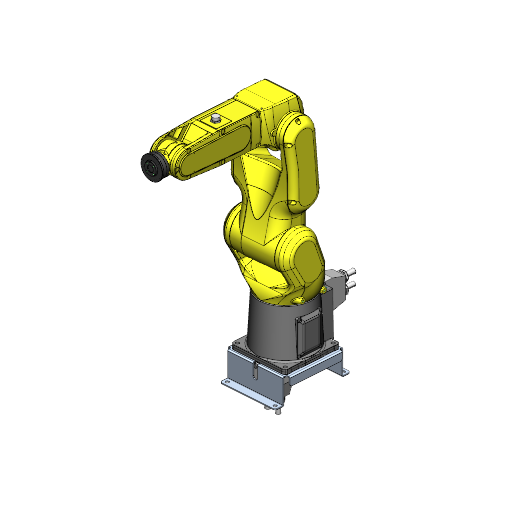

3D View

What are the technology applications of LR Mate 200iD?

FANUC LR Mate 200iD is a versatile robot suitable for a wide range of industrial applications.

Primary applications of FANUC LR Mate 200iD: Assembly, Dispensing, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

FANUC LR Mate 200iD applications programmed with ENCY Robot

Pick and place

Polishing

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase FANUC LR Mate 200iD or request a quote, please contact the manufacturer or an authorized local supplier.
