Industrial Robot FANUC M-10iA-8L Specs and Applications

Specifications

Type

Industrial Robot

Brand

Fanuc

Model

M-10iA-8L

Axes

Payload

8 kg

Reach

2028 mm

Repeatability

0.040 mm

Weight

150 kg

Maximum speed

630 °/s (axis J6)

IP rating

IP67 forearm & wrist / IP54 lower body

Mounting orientation

Floor, Angle, Ceiling (Inverted)

Controller

R-30iB

Power supply

380-575 V, 50/60 Hz, 3-phase

Power consumption

1000 W

Tool flange

ISO 9409-1-40-4-M6

The FANUC M-10iA-8L is a highly efficient industrial robot designed for a variety of automation tasks. With six axes and an impressive payload capacity of 8 kg, it offers a maximum reach of 2028 mm and repeatability of 0.040 mm, making it ideal for precision applications. This robust robot features a maximum speed of 630 °/s on axis J6, an IP67-rated forearm and wrist, and supports multiple mounting orientations, ensuring versatility in any industrial setting.

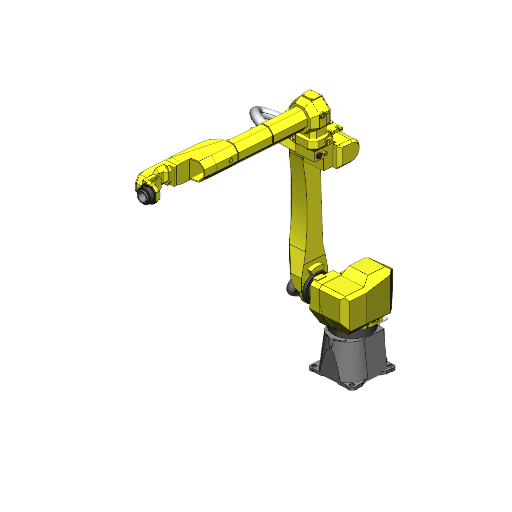

3D View

What are the technology applications of M-10iA-8L?

FANUC M-10iA-8L is a versatile robot suitable for a wide range of industrial applications.

Primary applications of FANUC M-10iA-8L: Assembly, Deburring, Machine Tending, Pick and place, Trimming. But we recommend to consult with your robot supplier or the manufacturer.
