Industrial Robot FANUC M-20iA Specs and Applications

Specifications

Type

Industrial Robot

Brand

Fanuc

Model

M-20iA

Axes

Payload

20 kg

Reach

1811 mm

Repeatability

0.080 mm

Weight

250 kg

Maximum speed

550 °/s

Speed at rated payload

550 °/s

IP rating

Body IP54 standard, optional IP55; Wrist & J3 arm IP67

Mounting orientation

Floor, Inverted (Upside-down), Angle, Wall, Ceiling

Controller

R-30iB (Open-air, Mate, A-cabinet, B-cabinet) with iPendant / R-30iA legacy options

Power supply

3-phase AC, 50/60 Hz, varying voltage (e.g. 380-575V) depending on configuration

Power consumption

0.38 kW

Certifications

CE, UL, CSA, ROHS

Safety functions

Dual Check Safety (DCS), Collision Guard

Communication interfaces

Ethernet/IP, standard Robot-I/O; upper arm integrated I/O and air supply options

The FANUC M-20iA is a six-axis industrial robot designed for versatile automation applications, capable of handling a payload of up to 20 kg and reaching 1811 mm. It offers exceptional repeatability of 0.080 mm and a maximum speed of 550 °/s, making it suitable for high-speed tasks. With an IP54 rated body and optional IP55, along with various mounting orientations, the M-20iA ensures adaptability in diverse industrial environments.

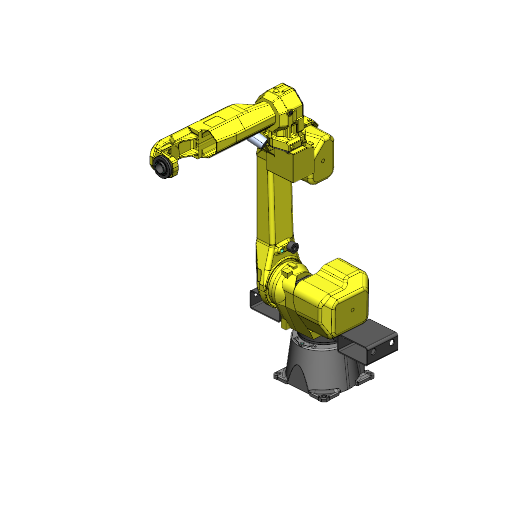

3D View

What are the technology applications of M-20iA?

FANUC M-20iA is a versatile robot suitable for a wide range of industrial applications.

Primary applications of FANUC M-20iA: Assembly, Machine Tending, Pick and place, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.
