Industrial Robot FANUC M-710iC-70 Specs and Applications

Specifications

Type

Industrial Robot

Brand

Fanuc

Model

M-710iC-70

Axes

Payload

70 kg

Reach

1360 mm

Repeatability

0.070 mm

Weight

545 kg

Maximum speed

225 °/s

Speed at rated payload

2.5 kW

IP rating

Body IP54 standard / optional IP67; Wrist & J3 arm standard/optional IP67

Mounting orientation

Floor, Inverted (Upside Down), Angle

Controller

R-30iA or R-30iB / R-30iB Plus

Power supply

3-phase AC 380-575 V, 50/60 Hz

Power consumption

2.5 kW

Certifications

CE [and applicable industrial safety standards such as ISO 10218-1]

Safety functions

Dual Check Safety (DCS), Collision Guard

Communication interfaces

Ethernet/IP, Ethernet IP Safety Adapter

The FANUC M-710iC-70 is a highly versatile industrial robot designed for a wide range of automation applications. Featuring six axes, a payload capacity of 70 kg, and a reach of 1360 mm, this robot ensures precise operation with a repeatability of 0.070 mm. With a maximum speed of 225 °/s and various mounting orientations available, the M-710iC-70 is ideal for diverse manufacturing environments, all while adhering to stringent safety standards such as CE and ISO 10218-1.

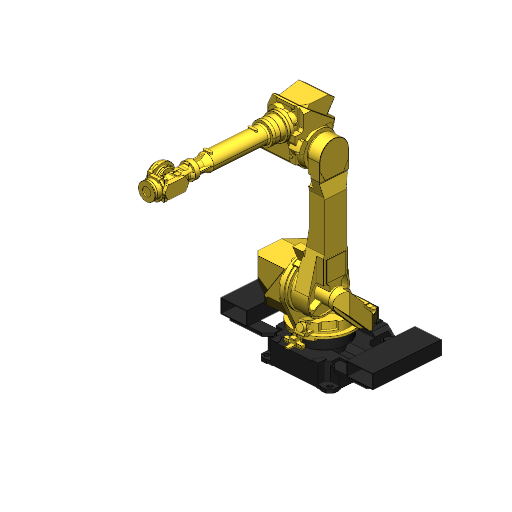

3D View

What are the technology applications of M-710iC-70?

FANUC M-710iC-70 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of FANUC M-710iC-70: Deburring, Machine Tending, Robot milling, Robot welding, Trimming. But we recommend to consult with your robot supplier or the manufacturer.
