Industrial Robot FANUC M-900iB-280 Specs and Applications

Heavy-Duty Industrial Robot FANUC M-900iB-280

Specifications

Type

Industrial Robot

Brand

Fanuc

Model

M-900iB-280

Axes

Payload

360 kg

Reach

2655 mm

Repeatability

0.100 mm

Weight

1540 kg

Maximum speed

180 °/s (J6 axis)

Speed at rated payload

180 °/s (J6), others as per max speed at rated payload

IP rating

Body IP54 (standard), optional IP56; Wrist & J3 arm IP67

Mounting orientation

Floor, Ceiling, Wall, Angle

Controller

R-30iB Plus

Power supply

380-575 V AC, 50/60 Hz, 3-phase

Power consumption

3000 W

Tool flange

ISO 9409-1-50-4-M6 interface, flange dimensions O125 H7 / O250 h8, 6 × M12 tapped holes

Certifications

ISO 9283 tested rigidity; standard industrial robotics certifications (e.g. CE, UL etc.)

Safety functions

Dual Check Safety (DCS), Collision Guard, Speed/Position Check

Communication interfaces

Ethernet/IP, Profinet, Standard Robot IO (8 inputs / 8 outputs), EE connector, Ethernet based protocols via R-30iB

The FANUC M-900iB-280 is a heavy-duty industrial robot designed for high-performance automation applications. With 7 axes, a remarkable payload capacity of 360 kg, and a reach of 2655 mm, this robot delivers exceptional precision with a repeatability of 0.100 mm. Built for durability, it features an IP54-rated body, optional IP56, and IP67 ratings for the wrist and J3 arm, making it suitable for various mounting orientations while ensuring compliance with industry standards.

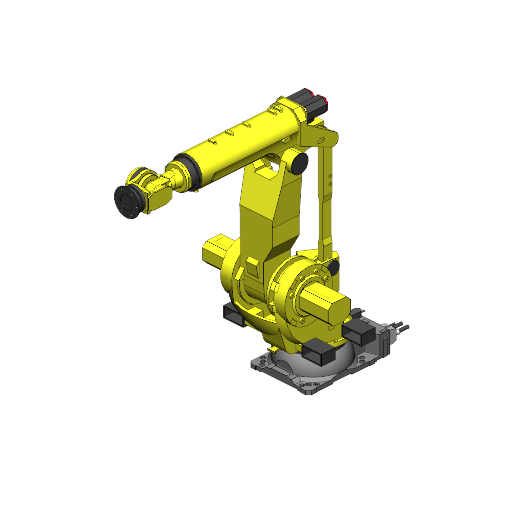

3D View

What are the technology applications of M-900iB-280?

FANUC M-900iB-280 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of FANUC M-900iB-280: Grinding, Machine Tending, Polishing, Robot welding, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

FANUC M-900iB-280 applications programmed with ENCY Robot

Polishing

Robot welding

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase FANUC M-900iB-280 or request a quote, please contact the manufacturer or an authorized local supplier.
