Industrial Robot FANUC R-2000iB-250F Specs and Applications

Specifications

Type

Industrial Robot

Brand

Fanuc

Model

R-2000iB-250F

Axes

Payload

250 kg

Reach

2655 mm

Repeatability

0.300 mm

Weight

1270 kg

Maximum speed

190 °/s (axis-J6)

Speed at rated payload

88 °/s (axis-J3 at 250 kg)

IP rating

Body IP54/IP56, Wrist & J3 arm standard/optional IP67

Mounting orientation

Floor

Controller

R-30iA or R-30iB

Power supply

3-phase 380-575V, 50/60Hz

Power consumption

2.5 kW

Certifications

CE, BS EN 60529, NRTL/UL-type listings

Safety functions

Dual Check Safety (Joint Position Check, Joint Speed Check, Cartesian Position Check, Cartesian Speed Check), Stop Category 0 & 1 options, External E-stops

Communication interfaces

EtherNet/IP, PROFINET, EtherCAT, Modbus TCP, DeviceNet, CC-Link, TCP/IP, RS232C, RS422, USB, PCMCIA

The FANUC R-2000iB-250F is a highly versatile industrial robot designed for rigorous automation tasks, featuring 6 axes and a substantial payload capacity of 250 kg. With a remarkable reach of 2655 mm and a repeatability of 0.300 mm, this robot ensures precision and efficiency in various applications. Constructed with an IP54/IP56 rated body and optional IP67 for the wrist and J3 arm, the R-2000iB-250F is built to withstand demanding environments, making it a reliable solution for modern industrial automation needs.

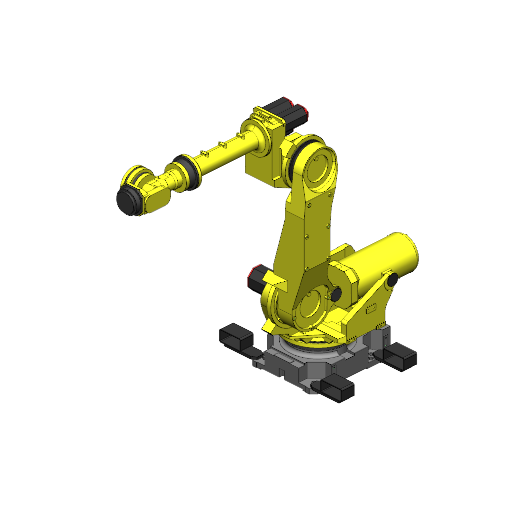

3D View

What are the technology applications of R-2000iB-250F?

FANUC R-2000iB-250F is a versatile robot suitable for a wide range of industrial applications.

Primary applications of FANUC R-2000iB-250F: Deburring, Machine Tending, Pick and place, Robot milling, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.
