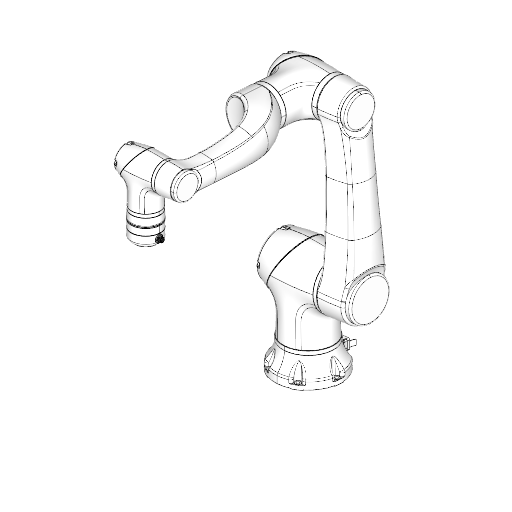

HANS E10-Pro

Specifications

Type

Cobot

Brand

Hans

Model

E10-Pro

Axes

Payload

10 kg

Reach

1000 mm

Repeatability

0.03 mm

Weight

43 kg

Speed at rated payload

2 m/s

IP rating

IP66

Mounting orientation

Any angle (floor, wall, ceiling, etc.)

Controller

Proprietary Elfin-PRO controller / Standard control box with 1000 Hz real-time force control

Power supply

200-240V AC, 50-60Hz (100-240V AC optional)

Power consumption

350 W

Safety functions

10 advanced safety configuration functions including collaborative operation and protective stop on resistance

Communication interfaces

TCP/IP, ModbusTCP, Profinet (optional), Ethernet/IP (optional)

Download HANS E10-Pro digital twin

The Cobot HANS E10-Pro is a versatile 6-axis collaborative robot designed for efficient industrial automation tasks. With a payload capacity of 10 kg and a reach of 1000 mm, it ensures exceptional precision with a repeatability of 0.03 mm at a maximum speed of 2 m/s. Built to withstand various environments, the HANS E10-Pro features an IP66 rating, can be mounted at any angle, and operates using the proprietary Elfin-PRO controller for advanced real-time force control.

What are the technology applications of E10-Pro?

HANS E10-Pro is a versatile robot suitable for a wide range of industrial applications.

Primary applications of HANS E10-Pro:Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplied or the manufacturer.
