Cobot HANS E10 Specs and Applications

Specifications

Type

Cobot

Brand

Hans

Model

E10

Axes

Payload

10 kg

Reach

1000 mm

Repeatability

0.05 mm

Weight

43 kg

Maximum speed

2 m/s

IP rating

IP54 (IP66 optional / IP66 for explosion-proof variant)

Mounting orientation

Floor, Wall, Ceiling, Tilt

Power supply

200-240V AC, 50/60Hz

Power consumption

350 W

Certifications

Safety functions

Protective stop on collision / ten advanced security configuration functions / limiting safety functions include joint limits, TCP speed, TCP force, TCP position constraints

Communication interfaces

TCP/IP, ModbusTCP, Profinet (optional), Ethernet/IP (optional)

The Cobot HANS E10 is a versatile 6-axis robotic solution designed for industrial automation, featuring a payload capacity of 10 kg and a reach of 1000 mm. Its high precision is supported by a repeatability of 0.05 mm and a maximum speed of 2 m/s, making it ideal for various applications. Rated IP54, with options for IP66, the HANS E10 can be mounted on the floor, wall, or ceiling, and includes comprehensive safety features, making it a reliable choice for demanding environments.

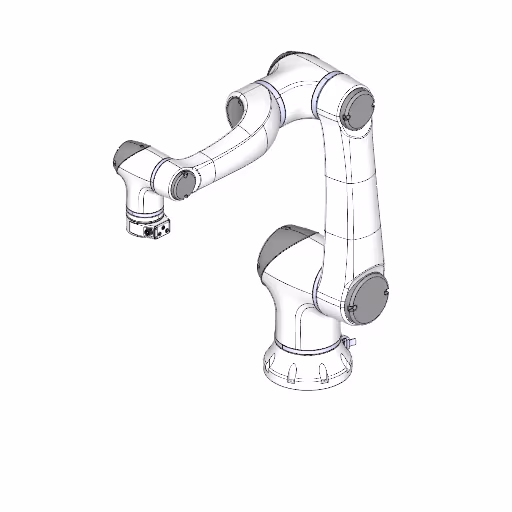

3D View

What are the technology applications of E10?

HANS E10 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of HANS E10: Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.
